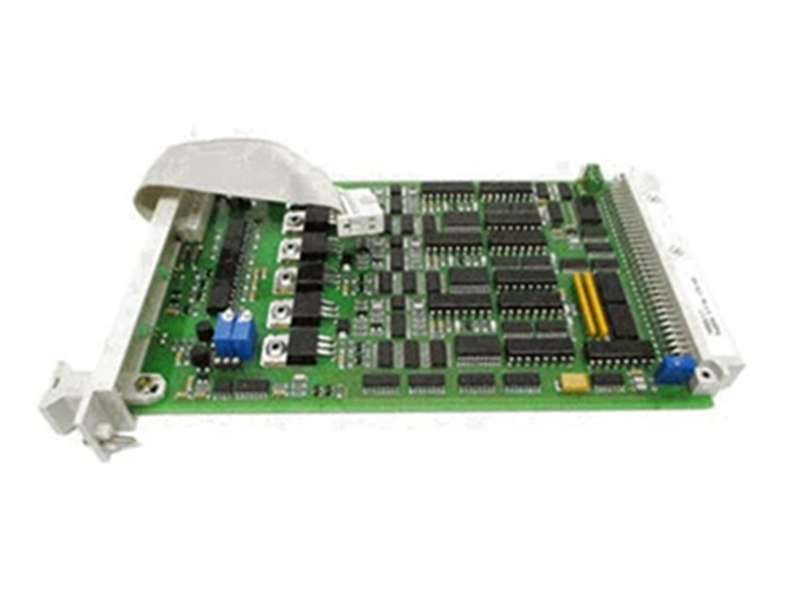

10201/2/1 Honeywell 8 channel Digital Output Module

Description:

The Honeywell 10201/2/1 is a fail-safe digital output module designed for use in a variety ofindustrial control applications.Providing reliablecontrol for loads up to 13 W.

 It provides eight independent output channels that can be configuredfor either Form A or Form C operation. The module is powered by a 24 VDC supply and can handle amaximum load current of 0.55 A per channel.Each output includes a suppression diode for handling inductive loads,ensuring fail-safe operation.

Specifications:

Product No. : 10201/2/1

Channels: 8
Output: 24 V DC solid-state source, short-circuit proof
Approvals: CE, TUV, UL
Software Version:  3.00
Rack Size: 4 TE,3 HE(3U)
Power Reguirements:
5VDC:25mA
24 VDC(internal):25 mA
24 V DC (external): 70 mA(without output load)
Output & Performance
Maximum Current: 550 mA
Maximum Lamp Load: 120mA(2.9W)
Maximum Load Capacitance:1uF
Voltage Drop: < 2.0 V DCat 500mA
Off Current:< 0.1mA
WDG Input Current: 8mA

Features:

• Fail-safe design

The module's outputs are fail-safe, meaning that they will go to a safe state in theevent of a fault or power failure.

• RFil/EMl immunity

The module is designed to be immune to radio frequency interference (RFl) andelectromagnetic interference (EMl).

• High-density design

Packs 16 analog input channels into a compact footprint, saving valuable rackspace.

• Wide input range

Accepts analog input signals from 0 to 4.1 V, compatible with various sensorsand transmitters.

• High accuracy

Features a 12-bit A/D converter with module inaccuracy of less than 0.25% for precise signal measurement.

• Rugged construction

Built to withstand harsh industrial conditions, with an operating temperaturerange of -40 to 70C and IP67 rating for dust and water resistance.

Datasheet Link:

10201/2/1 Honeywell 8 channel Digital Output Module PDF Datasheet
