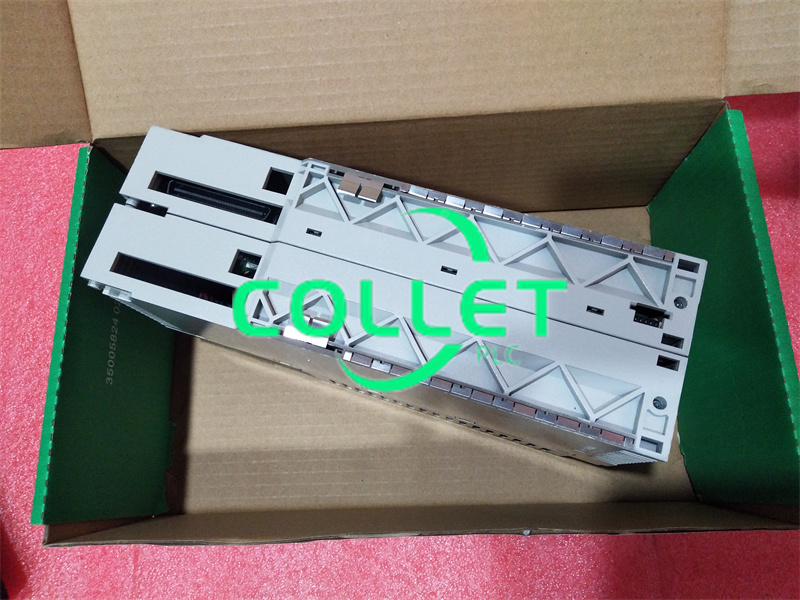

140DDI85300 Schneider Electric Modicon Quantum Discrete Input Module

140DDI85300 Schneider Electric Modicon Quantum Discrete Input Module in stock.

Item NO.:
140DDI85300
Payment:
T/T
Market Price:
$140
Product Origin:
France
Color:
Depends on material
Shipping Port:
Xiamen
Lead Time:
5-7 days
Goods Stock:
99
Product weight:
0.91 kg

Inquiry now

product introduction

Manufacture	Schneider
Model	140DDI85300
PN No.	140DDI85300
Catalog	Modicon Quantum
Description	Ethernet network TCP/IP module
Origin	U.S.A.
HS CODE	85389081
Dimension	516.531.5(CM)
Weight	0.91kg

Description:

The Schneider Electric 140-DDI-853-00 DC Discrete Input Module offers advanced functionality and high performance for industrial applications requiring efficient signal processing and reliable data acquisition. This module integrates seamlessly with Schneider Electric's Modicon Quantum platform and is essential to process automation and control systems. Its standard module format ensures compatibility across a variety of setups, providing flexible and dependable performance. Covered by a two-year MRO Electric and Supply warranty, the 140-DDI-853-00 is built to withstand rigorous industrial environments and maintain optimal operational efficiency over time.

Specifications:
Product Name: 140DDI85300

Input Voltage: 24V DC
Communication Interface: Modbus, TCP/IP
Ethernet Input Count: 16 times
Output Count: 16

Operating Temperature: -20°C to 60°C
Network Frequency Limits: 47…63 Hz
Maximum Leakage Current: 1.9 mA
Storage Ambient Temperature: -40…85 °C
Relative Humidity: 95% (Non-condensing)
Input Current: 11.1 mA/ 13.2 mA
Input Impedance: 2600 Ohm/ 3100 Ohm
Network Frequency Limits: 47/63 Hz
Bus Current Requirement: 250 mA
Max. Power Dissipation: 10.9 W
Isolation Between Groups: 1780 Vrms
Max Leakage Current: 1.9 mA
Addressing Requirements: 2 input words
Response Time: 4.9 to 0.75 ms

Feartures:

-High-speed processing, fast response time

-Built-in diagnostics and fault detection

-User-friendly programming interface

-Rugged and durable, suitable for industrial environments

-Flexible connectivity options for seamless integration into existing systems

Frequently Asked Questions:
1.What is the maximum input voltage for the 140-DDI-853-00?
This module's absolute maximum input voltage is 75 V, which allows it to handle minor voltage surges safely without risk of damage.

2.How quickly does the module respond to input changes?
The 140-DDI-853-00 responds 4 ms when switching between states, making it suitable for applications that require rapid input processing.

3.What kind of isolation does this module provide?
It provides 2500 Vrms DC isolation between the group and bus and 700 Vrms DC isolation between groups for one minute, which minimizes electrical interference and safeguards the module.

4.How is the input organized in this module?
The module features 32 discrete input points divided into four channel groups. This grouping supports efficient data organization and precise input processing.
