Manufacture |
Bently Nevada |
|
Model |
3500/93 |
| PN No. |
135785-01 |
|
Catalog |
3500 |
|
Description |
4-Channel Vibration Monitor |
| Origin | U.S.A. |
| HS CODE |
85389091 |
| Dimension |
24.4*2.4*24.1 (CM) |
| Weight | 0.7 kg |
Description:

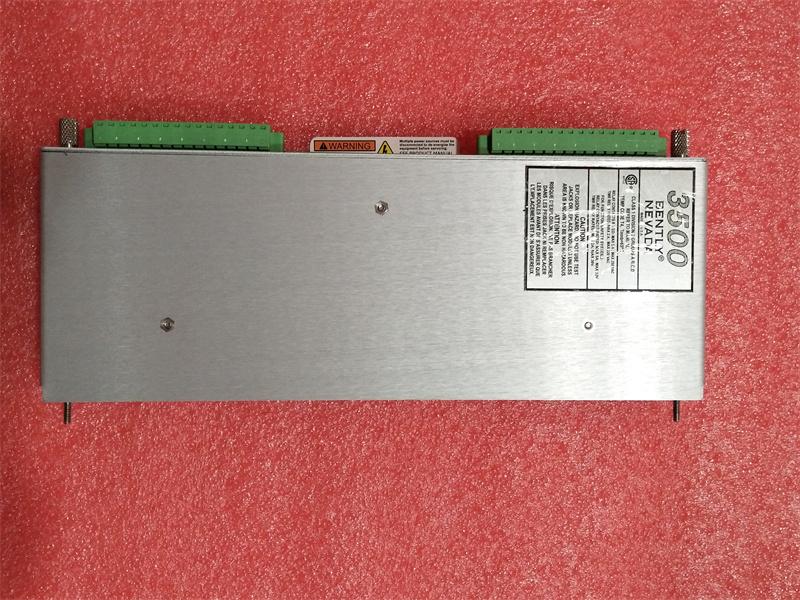

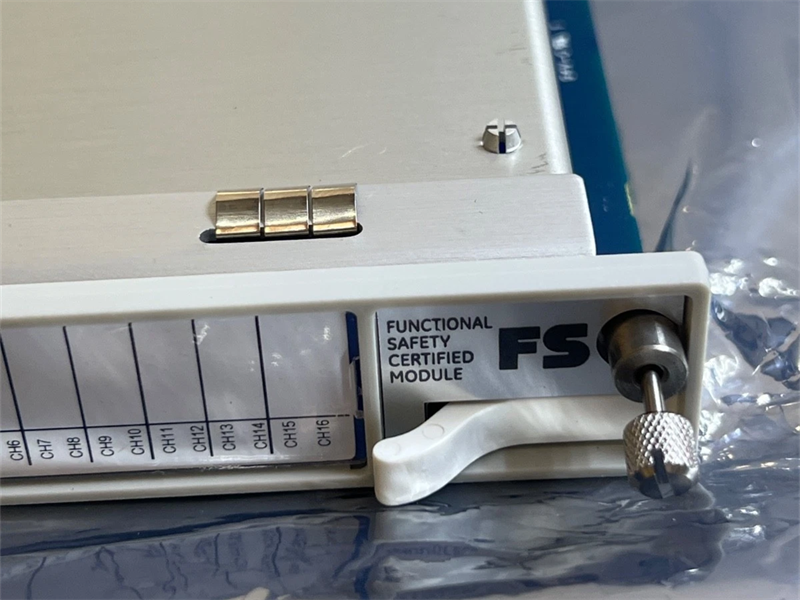

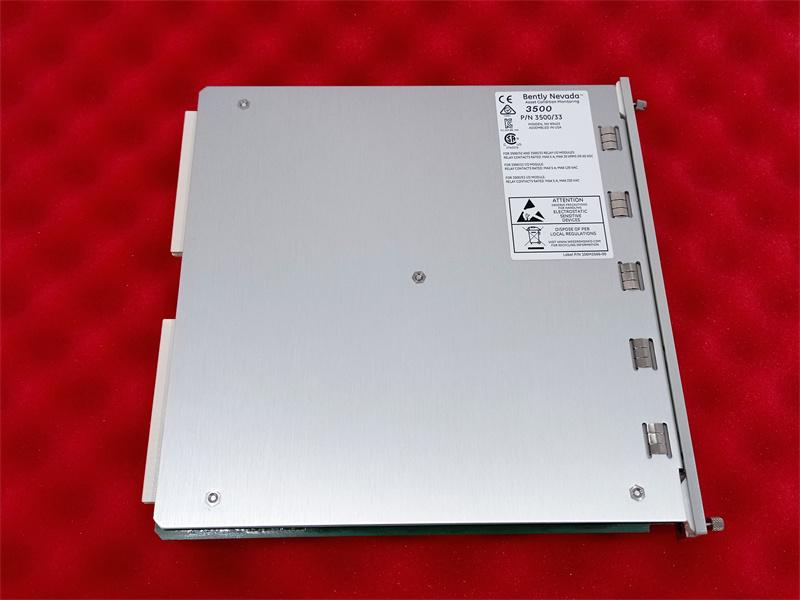

The 3500/33 16-Channel Relay Module is a full-height module that provides 16 relay outputs. You can place any number of 16-channel relay modules in any of the slots to the right of the Transient Data Interface (TDI) Module.
Each output of the 3500/33 16-Channel Relay Module can be independently programmed to perform voting logic.
Each relay of the module includes Alarm Drive Logic. Programming for the Alarm Drive Logic uses AND and OR logic and may use the following:
Alarming inputs (alert and danger statuses)
Not-OK
Individual Measured Variables from any monitor channel or any combination of monitor channels in the rack
You can program the Alarm Drive using the 3500 Rack Configuration Software.
Outputs
Front Panel LEDs
OK LED Illuminated when the 3500/33 16-Channel Relay Module is operating properly.
TX/RX LED Transmit and receive flashes when the 3500/3316-Channel Relay Module is communicating with other modules in the 3500 rack.
CH Alarm LED Illuminated when Relay channel is in an alarm state.
Relay Type Single-poleDouble-throw (SPDT)
Relay Environmental Sealing Epoxy-sealed
Relay Arc Suppressor 250 VrmsInstalled as standard
Relay Contact Life 10,000 cycles

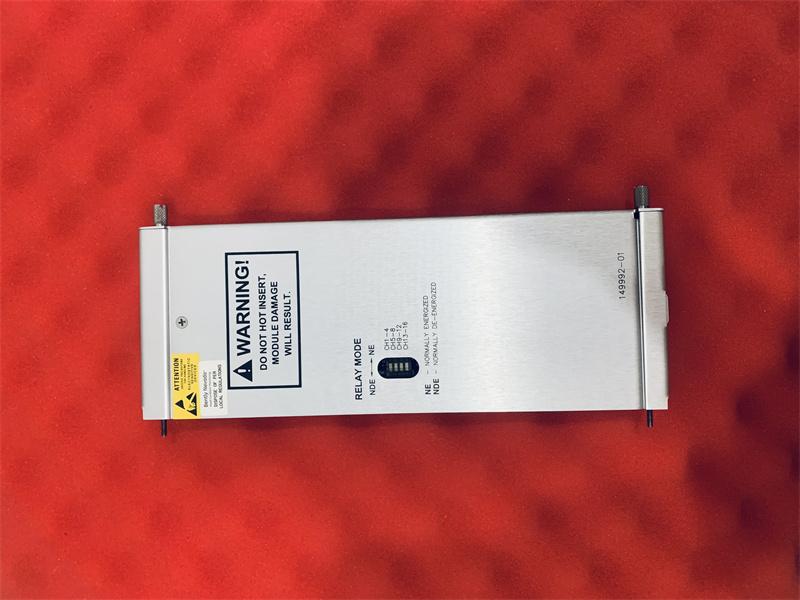

Relay Operation Four groups of four channels are switch selectable for Normally De-energized (ND) or Normally Energized (NE) operation.
Ordering Information – 3500/46M Hydro Monitor
Relay Module
3500/33 AA-BB
A: Output Module：
01 16-Channel Relay Output Module
02 16-Channel Failsafe Relay Output Module
03 Low Current 16-Channel Relay Output Module
04 Low Current 16-Channel Failsafe Relay Output Module
B: B: Hazardous Area Approval Option:
00 None
01 CSA / NRTL / C (Class 1, Division 2)
02 ATEX / IECEx / CSA (Class 1, Zone 2)
Our company offers the entire range of 3500 series power supplies with immediate availability. We maintain extensive stock—including both current and discontinued models—and welcome your inquiries.
Datasheet Link:

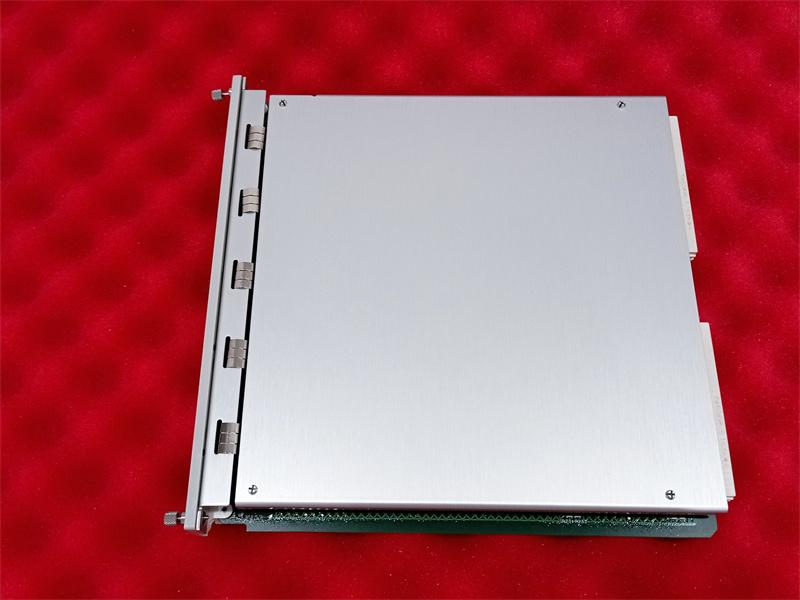

149986-01 Relay Module Unit 3500/33 Bently Nevada PDF Datasheet
