Manufacture |
Bently Nevada |
|
Model |
330106-05-30-10-02-05 |
| PN No. |
330106-05-30-10-02-05 |
|
Catalog |
3300 XL |
|
Description |
3300 XL 8 mm Proximity Probes |
| Origin | U.S.A. |
| HS CODE |
8537101190 |
| Dimension |
60*8.5*8.5 (CM) |
| Weight | 2 kg |
Description:

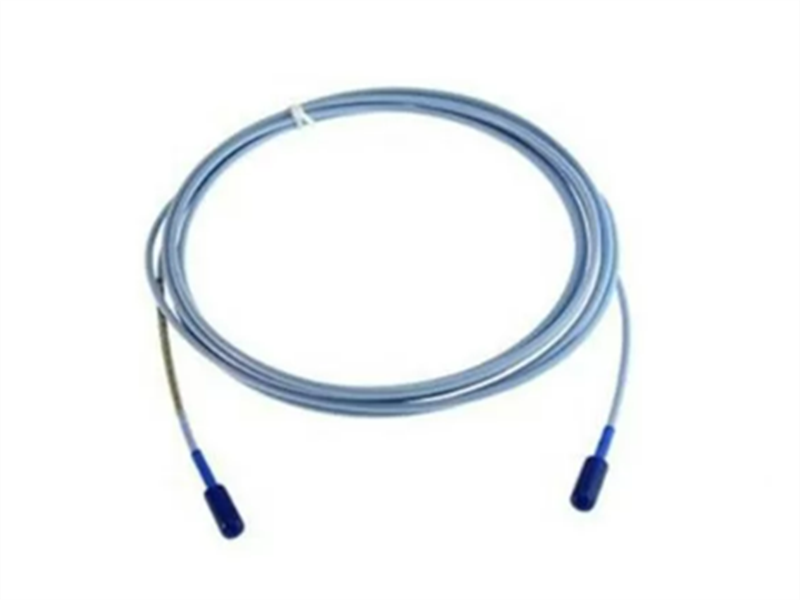

The Bently Nevada 330106-05-30-10-02-05 is a vibration sensor that is used to monitor the condition ofrotating machinery.It features an M10 x 1 threaded connection and is designed for high-precision vibration and position measurements. Available with armored and unarmored cable options, and equipped with a miniature ClickLoc™ coaxial connector. Fully compatible with 3300 XL Proximitor sensors.This probe is designed for harsh environments and provides highaccuracy and reliability for a wide range of applications.
Parameters:
Unthreaded Length Option: 00 (0.0 in)
Overall Case Length Option: 05 = 50 mm
Total Length Option: 10 = 1.0 meter (3.3 feet)
Connector and Cable-Type Option: 02 = Miniature coaxial ClickLocTMconnector, standard cable
Agency Approval Option: 05 = Multiple Approvals (CSA, ATEX, IECEx)
Probe Tip Material: Polyphenylene sulfide (PPS)
Probe Case Material: AISI 303 or 304 stainless steel (SST)
Operating Temperature Range: -31°C to +120°C (-31°F to +248°F)
Output Signal: Analog voltage, frequency, or pulse
Certifications: CE, CSA, ATEX, IECEx
Features:
-Non-Contact Measurement: Measures vibration and displacementwithout physical contact.
-Fluid-Resistant Options: Suitable for use in fluid environments. Certified for Hazardous Environments: Meets CSA, ATEX, and IECExstandards for hazardous locations.
-Ease of Installation: Designed for straightforward installation andintegration into existing systems.
-Non-contact sensor uses laser to measure vibration
-Mounts on machine housing
-Measures amount of vibration of the shaft and converts it into an electrical signal
-Electrical signal is sent to a vibration monitor, which analyzes the signal to determine the condition ofthe machine
FAQ:
1.Is there stock available or how long is the lead time?
Lead time: In stock
2.What is Bently Nevada 330101-00-12-10-02-00?
330106-05-30-10-02-05 is a 3300 XL 8 mm Proximity Probe used in Proximity Transducer System.
Datasheet Link:
330106-05-30-10-02-05 Bently Nevada 3300XL 8mm Reverse Mount Probes PDF Datasheet
