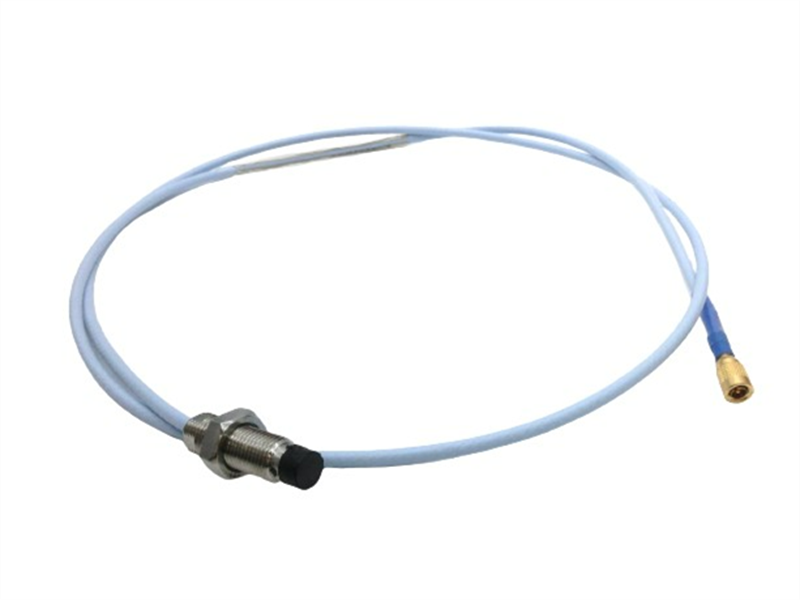

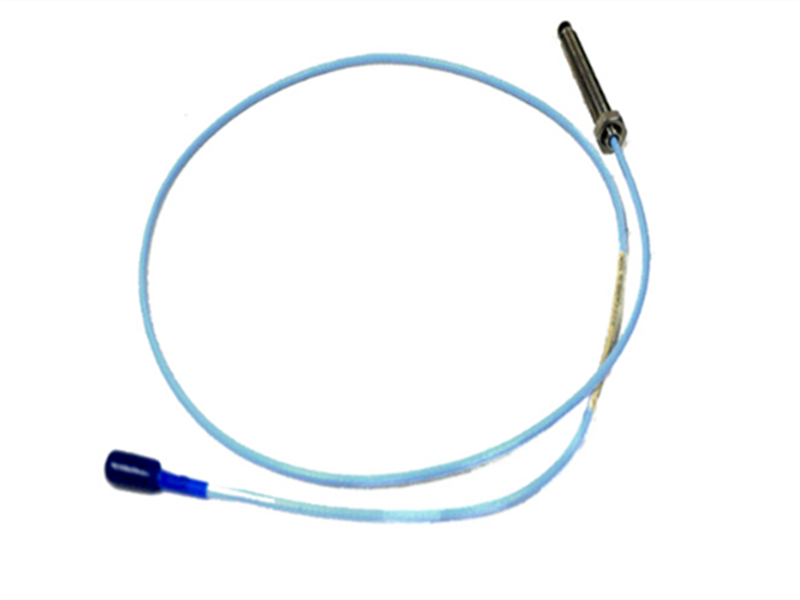

330101-00-12-10-02-00 Bently Nevada 3300 XL 8 mm Proximity Probes

Description:

The 330101-00-12-10-02-00 is a 300 x L 8 mm proximity sensor probe manufactured by Benty Nevada. Featuring a 3/-24 UNF thread and a rugged design, it provides reliable vibration monitoring for use in proximity sensor systems. It utilizes robust TipLoc and CableLoc technologies to ensure a tensile strength of 30 N (5 lbf). Its 1.2-inch housing comes with a standard cable, requiring no agency certification. An optional FluidLoc cable prevents liquid ingress.

The system outputs a voltage based on the distance between the probe tip and the conductive surface being measured.

It is primarily used for vibration and position measurements in fluid membrane bearing machinery, as well as bond phasor and velocity measurements, and can perform both static (position) and dynamic (vibration) measurements.

Model and Suffix Codes:

Model Number 330101-00-12-10-02-00
Unthreaded Length: 0.0 inch (00)
Housing Length: 1.2 inch (12)
Total Length: 1.0 meter (10)
Connector Type: Miniature Coaxial ClickLoc (02)
No Certification Required (00)
DC Resistance (1.0 meter): 7.59 + 0.50 Ω
Cable Capacitance: 69.9 pF/m (21.3 pF/ft)
Linear Range: 2 mm (80 mils)
Scale Factor: 7.87 V/mm +5% (Standard)
Temperature Range: -52°C to +177°C (Standard)
Probe Material: PPS probe tip, AISI 303/304 stainless steel housing

Features:

1. 3300 XL 8 mm system has the most cuting edge performancein an eddy curent proximity transducer system. The standard API67o Standard (4th Edition) formechanical configuration, linear range, precision, and temperature stabiity is also fully met by the standard 3300 XL 8 mm 5 meter system

2. The totalinterchangeability ofthe probe,extension cable and Proxinitor Sensor inall 330 XL 8 mm Proximity TransducerSystems enables this level of performancewithout the requirement for bench calibration or individual component matching

3. Additonally, connection guards can be purchased pre installed on 3300XL  mm Probes and Extension Cables. For instaltion inthe field, connector shields can also beprovided separately Such as when the cable mustbe run througha restrictive conduit. Allinstallations should include connector protectors since they promoteenvironmental protection.

FAQ:

1.Is there stock available or how long is the lead time?

Lead time: 2 weeks

2.What is Bently Nevada 330101-00-12-10-02-00?
330101-00-12-10-02-00 is a 3300 XL 8 mm Proximity Probe used in Proximity Transducer System.
