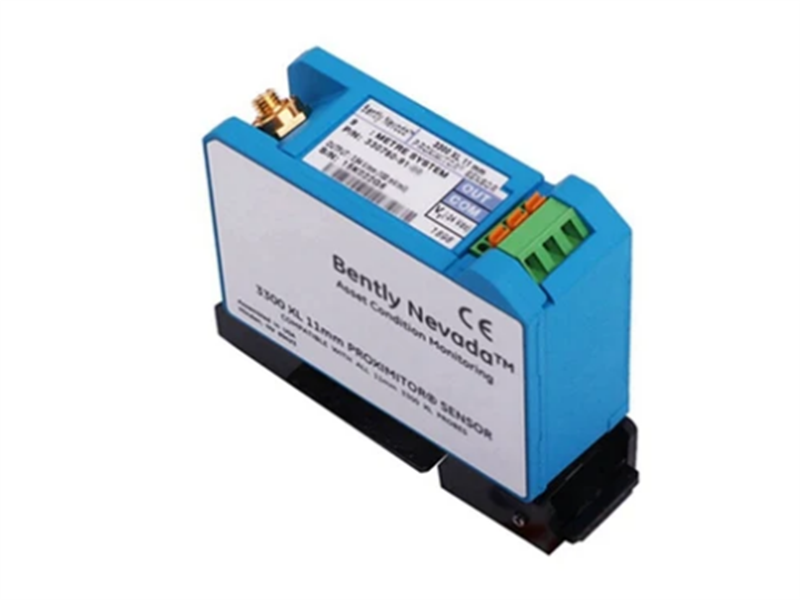

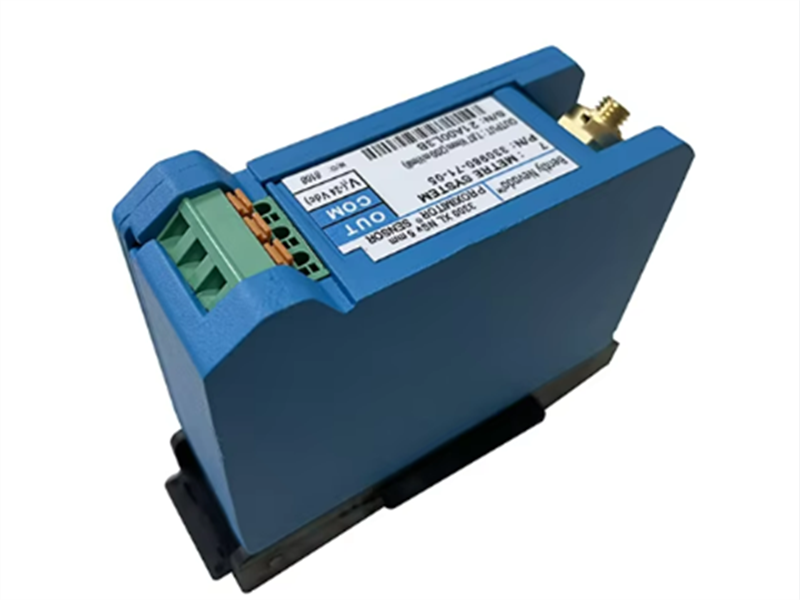

330180-51-00 Bently Nevada 5/8 mm Proximitor Sensor

Description:

The Bently Nevada 330180-51-00 Proximitor Sensor is a non-contact proximity sensor that uses a laser tomeasure the distance to a target. lt is typically used to monitor the position of rotating machinerycomponents, such as shafts, gears, and couplings. The sensor is mounted on the machine housing anddirected at the target. lt sends a laser signal to the target and measures the time it takes for the signal toreturn.This time is converted to a distance measurement.

The 330180-51-00 Proximitor Sensor is similar to the 330100-50-00 Proximitor Sensor, but it has a longertarget distance of 180 mm (7.09 inches) and a larger probe tip diameter of 12 mm (0.47 inches). lt alsohas a longer cable length of 10 meters (33 feet).

Features:

• Ideal for Compression Systems, Speed Measurements, and Fluid-Film Bearing Machines
• Extended Temperature Range Applications
• Complete Interchangeability of Units and Cabling
• Backwards Compatible with Other Non-3300 XL Series Transducer System Components

Parameters:
Product Number: 330180-51-00
Measurement Range: 2 mm to 80 mm
Frequency Response: DC to 10 kHz (-3 dB)
Output Signal: -24 VDC to -28 VDC
Temperature Range: -35°C to +177°C (-31°F to +351°F)
Operating Voltage; 24 VDC, regulated
Accuracy : ±1% of full-scale range
Environmental Rating: IP67

Datasheet Link:

330180-51-00 Bently Nevada 5/8 mm Proximitor Sensor PDF Datasheet
