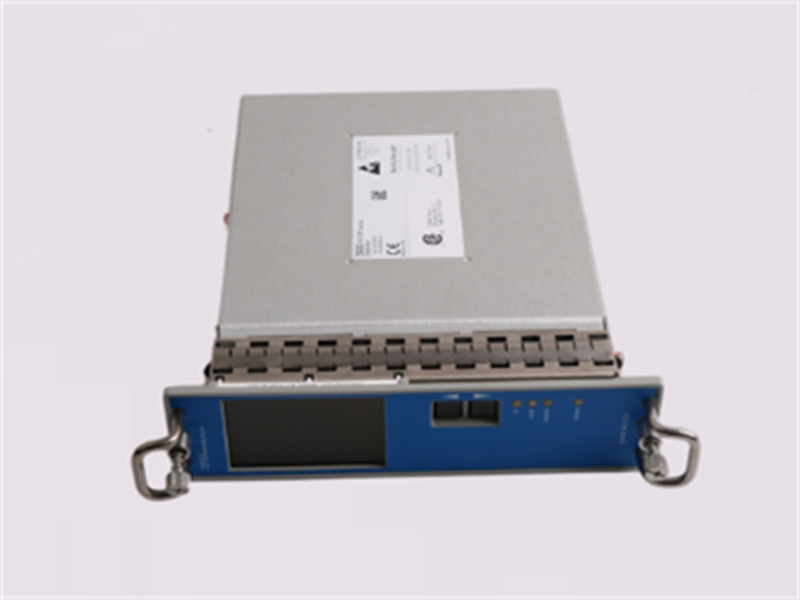

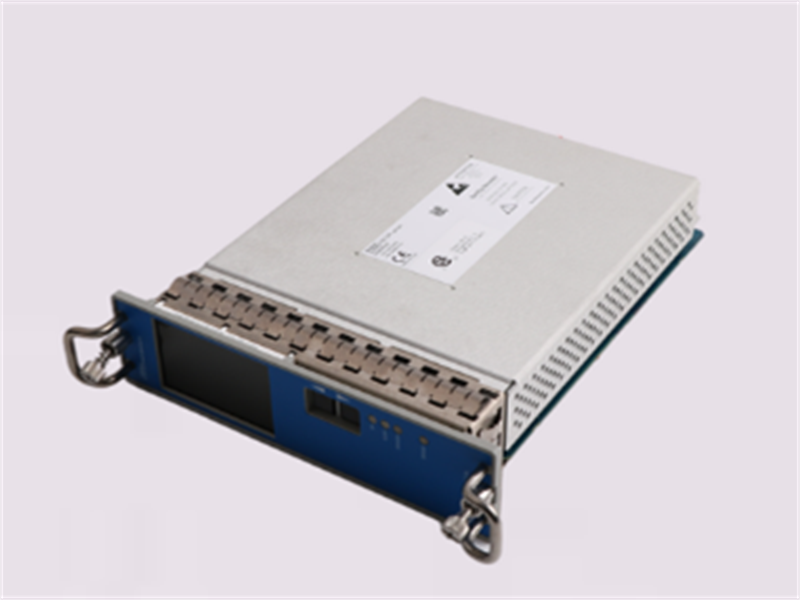

3500/61E Bently Nevada 285694-02 Temperature Monitor Module

Description:

The 3500/61E and 3500/67E modules provide six channels and two channel of temperature monitoring. Both monitors can be ordered to accept Resistance Temperature Detector (RTD) or Thermocouple (TC) temperature inputs. The TC option provides 500 Vdc of channel-to-channel isolation. The modules condition these inputs and compare them against userprogrammable alarm setpoints. The user programs the configuration parameters for the monitor using the 3500 Rack Configuration Software.

Specifications:

Input Impedance:20 k Ω (standard);
Power Consumption: 4.75 watts, typical.
Output Impedance: 500 Ω.
Transducer Power Supply:24 Vdc, 40 mA maximum per channel.
Operating Temperature: -20 ºC to +65 ºC (-4 ºF to +150 ºF)
Storage Temperature: -30 ºC to +85 ºC (-22 ºF to +185ºF).
Humidity: 95%, non-condensing.

Features:

• Real time location tracking

Real time monitoring and recording of mechanical position data, precise monitoring.

• Integrated I/O function

supports smooth data transmission and system interoperability.

• Industrial grade durability

stable operation under harsh conditions, ensuring uninterrupted performance.

• 3500 System Compatibility

Seamless Integration with Bently Nevada 3500 Monitoring Platform.

• Proactive alarm

timely diagnosis, prevention of faults, and ensuring operational safety.

Figures and Tables:

Datasheet Link:

3500/61E Bently Nevada 285694-02 Temperature Monitor Module PDF Datasheet
