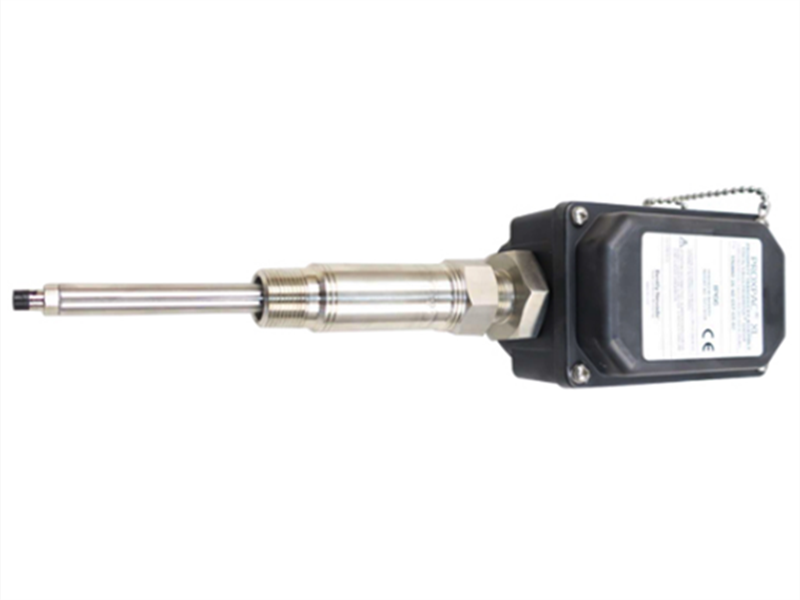

330881-28-00-080-03-02 Bently Nevada PR0XPAC XL Proximity Transducer Assembly

Description:

The PROXPAC XL proximity sensor assembly is designed similarly to our 31000/32000 proximity probe housing assembly. Like the 31000 and 32000 housings, this assembly offers the same advantages and functionality, providing easy user access and external adjustment of the proximity probe.

However, the PROXPAC XL assembly also incorporates a separate 3300XL proximity sensor within its housing cover. This design makes the PROXPAC XL assembly a completely independent proximity probe system, eliminating the need for extension cables between the probe and its associated proximity sensor. Furthermore, since field wiring connects directly between the monitor and the PROXPAC XL assembly, a separate proximity sensor housing is also unnecessary.

The PROXPAC XL housing is made of polyphenylene sulfide (PP), an advanced molding thermoplastic material. This material replaces the steel and aluminum used in previous housings in the Bently Nevada product line. It also incorporates glass fiber and conductive fibers into the PPS material to enhance housing strength and more effectively dissipate static charge. The PROXPAC XL enclosure meets Type 4X and IP66 environmental protection standards, providing extra protection in harsh environments.

Parameters:

Manutacturer: Bently Nevada
Product Model : 330881-28-07-038-08-02
Product Type :PROXPAC XL Proximity Transducer Assembly
Probe System: 3300 XL 8 mm proximity probe
Nominal Sensitivity : 7.87V/mm (200mV/mil)
Linear Measurement Range : 2.0mm (80mils) typical
Probe Tip Diameter : 8mm
Extension Cable Length : 7.0 meters
Total System Length : Factory-matched probe and extension assembly
Output Signal : 4-20 mA proportional output
Frequency Response : 0-10kHztypical
Supply Voltage : -24VDC nominal
Current Consumption : Approx. 12mA
Connector Type : Coaxial ClickLoc-style connector
Probe Housing Material : Stainless steel
Operating Temperature (Probe) :- 35°Cto +177°C
Operating Temperature (Driver) : -35°C to +85°C

Features:

• High-precision measurement

Ensures micron-level shaft displacement and vibration monitoring

• Wide temperature adaptability

Suitable for extreme industrial environments

• Strong interference resistance

EMC/EMI resistant design

• Easy installation and maintenance

Standardized interfaces and modular design

• High compatibility

Compatible with Bently Nevada Proximity Monitoring systems and other monitoring equipment

FAQ:

Q1.Is there stock available or how long is the lead time?

Lead time: 2 weeks
Q2: What probe size is used in the 330881-28-00-080-03-02 assembly?
The 330881-28-00-080-03-02 uses a 3300 XL 8mm proximity probe.
Q3: What is the output signal type?
The assembly provides a 4-20mA proportional output signal.
Q4: What supply voltage does the assembly require?
The system operates with a nominal -24 VDC power supply.
