Manufacture |
Bently Nevada |
|
Model |
74712-06-05-03-00 |
| PN No. |
74712-06-05-03-00 |
|
Catalog |
74712 |
|
Description |

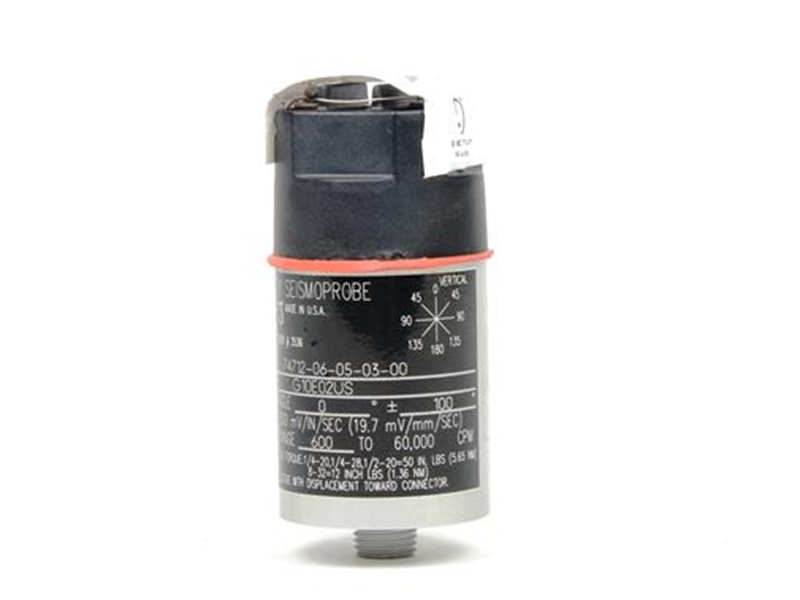

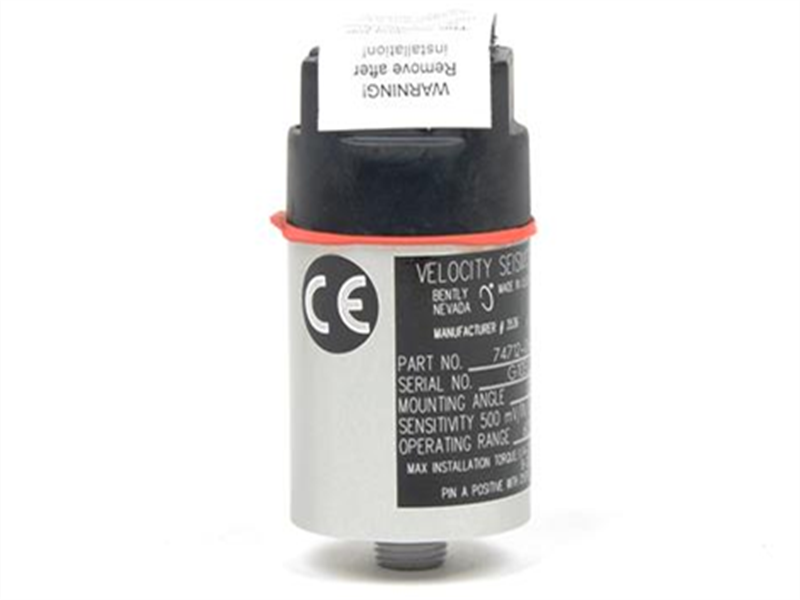

74712-06-05-03-00 Bently Nevada High Temperature Velocity Seismoprobe |
| Origin | U.S.A. |
| HS CODE |
8537101190 |
| Dimension |
6.32*2.53*2.44 (CM) |
| Weight | 0.142 kg |
Description:
The Bently Nevada 74712-06-05-03-00 is a high-temperature velocity seismic probe designed for harsh industrial environments. It is used to measure the absolute vibration of bearing housings, enclosures, or structures. This two-wire system consists of a sensor, a corresponding cable, and an optional velocity-to-displacement converter.
It is used to measure the vibration of rotating machinery such as turbines, pumps, and compressors. Even under extreme conditions, this seismic probe ensures accurate and reliable vibration data.
As part of the 74712 series, this sensor employs moving-coil technology, providing a voltage output proportional to the vibration velocity.
Features:
- Measures Absolute Bearing Housing, Casing, or Structural Vibrations
- Two-Wire
- System Sensitivity of 20 mV/mm/s (500 mV/in/s)
Ordering Information
SPECIFICATIONS:
Type: Velomitor Piezo-velocity Sensor
Product No. : 74712-06-05-03-00
Product type : 74712 High-temperature Two-wire Transducer
Transducer Mounting Angle/Minimum Operating Frequency Option : 06 = 0 ±100, 10 Hz (600 cpm)
Mounting Base Option : 05 = No base; 1/2-in 20 UNF-3A stud
Connector Option : 03 = Terminal block top mount
Agency Approval Option : 00 = No Approvals
Dynamic Range:80 dB
Datasheet Link:
74712-06-05-03-00 Bently Nevada High Temperature Velocity Seismoprobe PDF Datasheet
