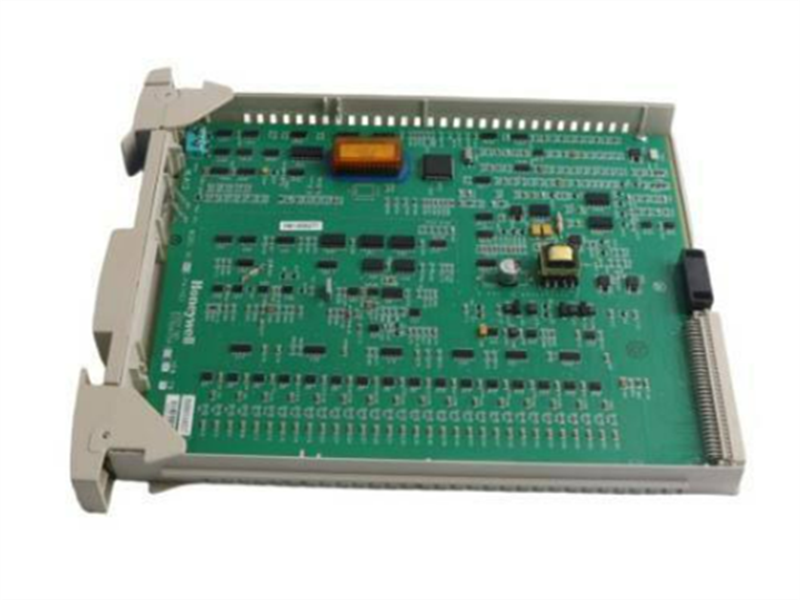

51304754-150 Honeywell MC-PAIH03 High Level Analog Input Processor

Description:

The Honeywell 51304754-150 advanced analog input processor is a crucial control component in industrial automation, designed for high-precision signal acquisition under complex operating conditions. This device features a modular architecture with 16 differential input channels, capable of processing both voltage and current signals simultaneously, making it particularly suitable for the signal input requirements of two-wire or self-powered transmitters. Its innovative circuit design effectively suppresses electromagnetic interference commonly found in industrial environments, ensuring stable operation even in harsh conditions.

Specifications:

Product Number: 51304754-150
Product Type: MC-PAIH03 High-Level Analog Input Processor - 16 Inputs
Input Channels: 16 Differential Input Channels
Input Range: 0 to 5 V, 1 to 5 V, 0.4 to 2 V, 4 to 20 mA (up to 250)
Normal Mode Filter Response: Single-pole RC filter, -3 dB @ 1 Hz
Maximum Normal Mode Input (Differential Input, Undamaged): ± 30 V
Input Impedance (Voltage Input): > 10 MΩ (Supply)
Maximum Input Voltage (Any Input Reference Common Terminal, Undamaged): ± 30 V
Input Scan Rate: 4 samples per second per channel. All channels are sampled within a 250 ms window.
Hardware accuracy (CMV = 0 V): ± 0.075% of full scale (23.5°C ± 2°C), ± 0.15% of full scale (0 to 50°C)

Features:

• High-Speed Data Exchange

Enables rapid communication between controller and I/O modules

• Redundant Architecture

Supports dual I/O links for increased system reliability

• Modular Integration

Designed to fit seamlessly into Honeywell HPM card files

• Real-Time Performance

Ensures deterministic control in critical process environments

• Legacy System Support

Compatible with TDC 3000 and Experion PKS platforms

• Field Proven

-Widely used in refining, chemical, and power generation industries
-Enables high-bandwidth data transmission for real-time control.
-Supports redundant communication paths for system reliability.
-Facilitates connection to multiple I/O link segments.
-Ensures robust noise immunity in industrial environments.

Datasheet Link:

51304754-150 Honeywell MC-PAIH03 High Level Analog Input Processor  PDF Datasheet
