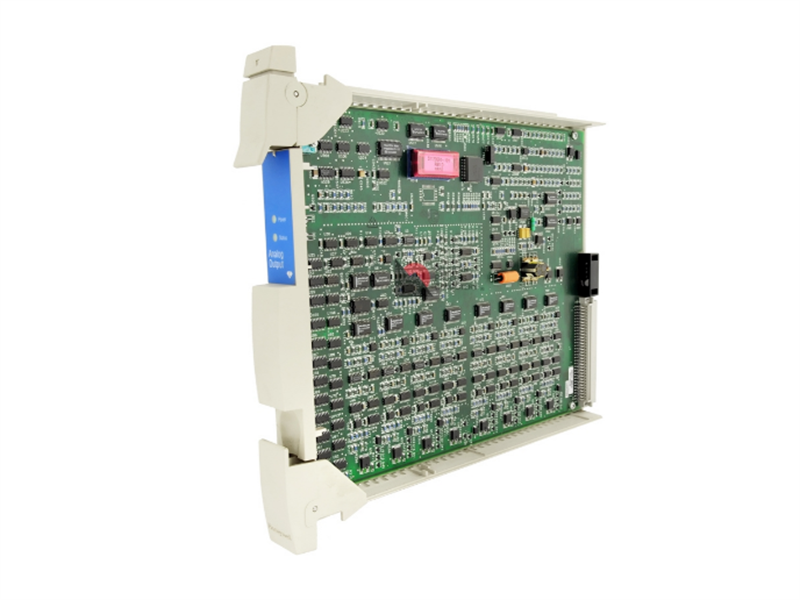

51309152-175 Honeywell MC-PAOX03 Analog Output

Description:

The Honeywell 51309152-175 is an analog output module designed for industrial automation applications. It provides a flexible and reliable solution for a wide range of industrial applications. This module is designed to meet the stringent requirements of process control, automation, and data acquisition systems. It offers eight analog output channels suitable for controlling various devices and processes.

Specifications:

Product Number: 51309152-175
Product Type: MC-PAOX03 Analog Output (AO)
Number of Channels: 8
Minimum ORU(1): IOP
Output Ripple: 100 mV peak-to-peak at power frequency with 250 Ω load
Resolution: ± 0.05%
Calibration Accuracy: ± 0.35% (25°C) (including linearity)
Humidity: 10 - 90% non-condensing
Directly Accessible Output Current Range: 0.1-21.4 mA
Maximum Output Current: 26 mA
Analog Output: 8-point processor/FTA
Hardware accuracy (CMV = 0 V): ± 0.075% of full scale (23.5°C ± 2°C), ± 0.15% of full scale (0 to 50°C)

Features:

• High-Speed Data Exchange

Enables rapid communication between controller and I/O modules

• Redundant Architecture

Supports dual I/O links for increased system reliability

• Modular Integration

Designed to fit seamlessly into Honeywell HPM card files

• Real-Time Performance

Ensures deterministic control in critical process environments

• Legacy System Support

Compatible with TDC 3000 and Experion PKS platforms

Datasheet Link:

51309152-175 Honeywell MC-PAOX03 Analog Output PDF Datasheet
