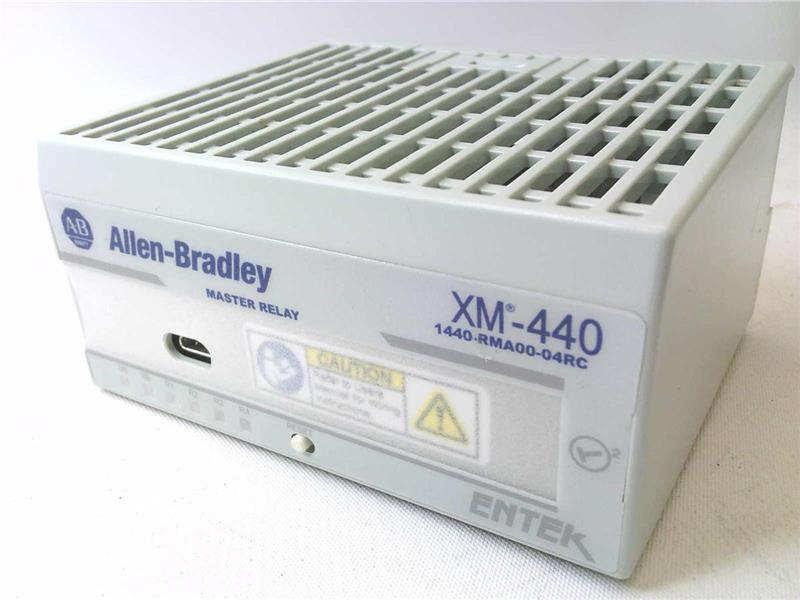

Allen-Bradley 1440-RMA00-04RC XM-440 Master Relay Module

Description:

The Rockwell Allen-Bradley 1440-RMA00-04RC (XM-440) Master Relay Module combines four high-power relay outputs with XM bus master capabilities to provide remote, shared, and voted relay operation for distributed XM measurement modules. It acts as a master/scanner on the XM network, monitoring alarms from up to 64 XM measurement modules (slaves) and controlling its own relay outputs accordingly. The module supports “A out of B” voting logic (up to 16 alarms/relays per relay), programmable time delays (0…25.5 s), and failsafe or non-failsafe operation. It can be expanded with one or two XM-441 Expansion Relay modules, providing a total of up to 12 relays. The XM-440 can also send trigger events to groups of XM measurement modules to collect triggered trend data. Configuration is via DeviceNet or serial port (RS-232) using the XM Serial Configuration Utility.

Key capabilities:

• Four onboard DPDT relays (2 Form C each), expandable to 12 relays with XM-441 expansion modules

• “A out of B” voting logic per relay, using up to 16 alarms/relays from any XM measurement modules on the bus

• Voting logic with “any” or “all” conditions, activation delay (0…25.5 s), latching or non-latching, failsafe or non-failsafe

• Acts as DeviceNet master/scanner for XM measurement modules (supports Poll and COS connections)

• Scanlist supports up to 64 XM slaves with configurable module type, share option (primary or shared), and slave EPR (10…32,000 ms)

• Interscan delay (2…9,000 ms) to balance network traffic and scan rate

• Remote relay reset via wired switch, serial command, or DeviceNet command

• Manual reset via onboard reset switch

• Sends group trigger events to XM measurement modules to collect triggered trend data (up to 4 independent trigger groups)

• Event log stores 128 most recent events (alarm/relay status changes, configuration changes, setpoint multiplier activation)

• Serial port (RS-232) for local configuration (mini-connector or terminal base)

• DeviceNet communication with configurable baud rate (125/250/500 kbps or autobaud) and node address (0…63)

Applications:

• Centralized relay and voting logic for distributed XM condition monitoring systems

• Machine protection systems requiring multiple high-power relay outputs (e.g., turbines, compressors, generators)

• Voted relay systems for safety-related shutdown (e.g., 2-out-of-3 voting)

• Triggering trend data collection across multiple XM measurement modules during machine startup or alarm events

• Remote alarm management with latching relays and remote reset

• Integration into DeviceNet networks as a dedicated XM master (not for generic DeviceNet devices)

• Expansion of relay capacity using XM-441 modules for up to 12 total relays

Quality Assurance:

100% brand new original. 1-year warranty. In stock for fast delivery (1-3 days).
