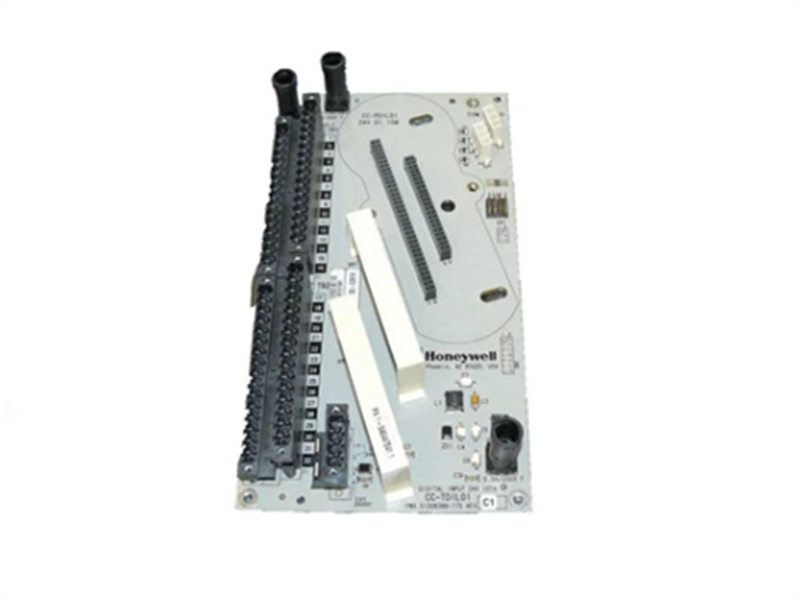

CC-GAOX11 HONEYWELL 51306311-175 Analog Output IOTA Module

Description:

The HoneywellCC-GAOX11(PN: 51308336-175) is a16-channel Redundant Analog Output IOTA with Galvanic Isolation (GI), designed forhazardous or electrically noisy environments. It serves as themounting base for a redundant pair of CC-PAOX01 modules, providing high-integrity 4-20 mA signals to field devices like valve positioners and actuators.

It is engineered to deliver reliable voltage or current outputs to field devices with consistent accuracy and stability. The module supports standard communication protocols and provides robust isolation to ensure safe operation in industrial environments.

This 12-inch vertical IOTA prevents field electrical faults from affecting the C300 controller and eliminates ground loop interference, ensuring reliable signal integrity in large-scale industrial plants.

Specifications:

Product No. : 51306311-175

Module name: CC-GAOX11

Product Type: Analog Output Module
Output Type: Analog voltage/current outputs
Mounting: DIN-rail compatible
Output Range: 4-20mA per channel
Operating Temp: 0°C to 60°C
Humidity resistant (5-95% non-condensing)
Wide storage temperature range (-40°C to 85°C)
Channel Count: 16 analog output channels
Signal Range: 4-20 mA standard outputI
solation: 250 VAC between hazardous and safe/power circuits

• Power Requirements:

• Maximum Power Dissipation:

Features:

-Supports multiple analog output channels for control and monitoring
-High accuracy and linearity for precision signal transmission
-Integrated protection against electrical faults and open-wire conditions
-Compact design for easy installation in I/O racks
-Compatible with Honeywell Experion Series C and similar systems
-Supports redundant 12-inch IOTA configuration
-Compatible with MTL4546C (single-channel) and MTL4549C (dual-channel) HART isolators
-Enables open wire detection and HART communication in hazardous areas
-Certified for Division 2/Zone 2 safe area installation with IS connections to Zone 0/1

QA:

Q1: What's the redundancy configuration?
A1: Fully redundant 1:1 backup for all 8 channels

Q2: Can it handle harsh environments?
A2: Yes, designed for industrial conditions
Q3: What connectors are used?
A3: Standard screw terminals for easy wiring
Q4: Does the CC-GAOX11 require external isolation barriers?
A4: No. The galvanic isolation is integrated, eliminating the need for third-party barriers and saving cabinet space.
Q5: Difference between CC-TAOX11 and CC-GAOX11?
A5: CC-TAOX11 is a standard redundant AO IOTA. CC-GAOX11 provides Galvanic Isolation for enhanced protection against noise, ground loops, and surges.

Datasheet Link:

CC-GAOX11 HONEYWELL 51306311-175 Analog Output IOTA Module PDF Datasheet
