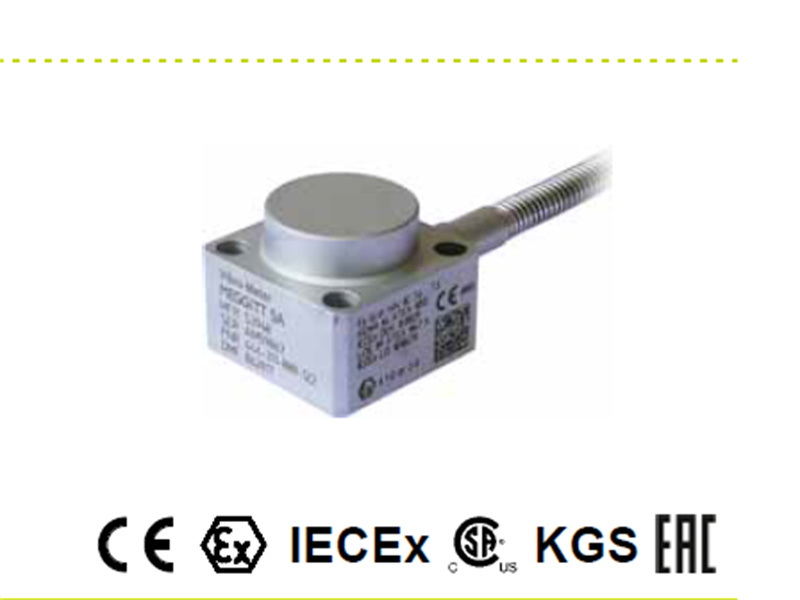

CE311 Vibration 444-311-000-021 Piezoelectric Accelerometer

Item NO.:
CE311
Payment:
T/T
Market Price:
$9500
Product Origin:
Switzerland
Color:
Depends on material
Shipping Port:
Xiamen
Lead Time:
5-7 days
Goods Stock:
2
Product weight:
0.38 kg

Inquiry now

product introduction

Manufacture	Vibration
Model	CE311
PN No.	444-311-000-021
Catalog	NIL
Description	Piezoelectric Accelerometer
Origin	Switzerland
HS CODE	85389091
Dimension	26.224.25 (CM)
Weight	0.38 kg

Description:

The CE311 piezoelectric accelerometer from Meggitt’s vibro-meter® product line is a vibration sensor designed for the monitoring and protection of machinery in harsh industrial environments and/or hazardous areas.

The CE311 sensor features a symmetrical shearmode measuring element using polycrystalline material. The sensor uses integrated electronics to provide the required signal processing, eliminating the need for an external signal conditioner (charge amplifier). The electronics also performs charge-to-current conversion in order to provide a current-modulated output signal that is suitable for transmission over long distances.

The CE311 is fitted with an integral cable (twisted pair, shielded) in a hermetically sealed link, protected by a flexible, leak-tight protection tube (stainless-steel hose). More specifically, the sensor and protection tube are hermetically welded to one another, resulting in a system that is fully protected against cooling fluids, lubricants, water, steam and other potential contaminants. This makes the CE311 an extremely reliable device suitable for the long-term monitoring of vibration in many industrial applications.

The CE311 sensor and electronics are insulated from their housings (integral case insulation) and have a sensitivity of 50 μA/g.

The CE311 is available in different versions with various cable lengths for different industrial environments: standard versions for use in standard (non-hazardous) areas and Ex versions for installation in hazardous areas (see Ordering information on page 6).

FEATURES

From the vibro-meter® product line
Sensitivity: 50 μA/g
Frequency response: 2 to 8000 Hz
Temperature range: −40 to 125°C
Long-distance signal transmission
Integrated electronics
Integral case insulation
Available in standard versions and Ex versions certified for use in potentially explosive atmospheres

BLOCK DIAGRAM

CE311 DRAWINGS

Ordering Number:

Old Type

Type	Designation		Ordering Number
CE 311	Piezoelectric Accelerometer	With integral cable 3 m	444-311-000-01X
		With integral cable 6 m	444-311-000-02X
		With integral cable 12 m	444-311-000-03X
		Ex i with integral cable 3 m	444-311-000-11X
		Ex i with integral cable 6 m	444-311-000-12X

New Type

Type	Designation	Part number (PNR)
CE311	Different versions of the piezoelectric accelerometer:
	– Standard version with 3 m integral cable	444-311-000-013
	– Standard version with 6 m integral cable	444-311-000-023
	– Standard version with 12 m integral cable	444-311-000-033
	– Standard version with 20 m integral cable	444-311-000-043
	– Ex version with 3 m integral cable	444-311-000-113
	– Ex version with 6 m integral cable	444-311-000-123

Frequently Asked Questions:
1.What's Frequency response of CE311 444-311-000-021?
−3 dB at 2 Hz.
<±5% between 6 and 5000 Hz.
<±10% between 5000 and 8000 Hz.

2.What‘s CALIBRATION of CE311 444-311-000-021?
Dynamic calibration at factory at 120 Hz and 5 gpeak (23°C, 73°F). No subsequent calibration necessary.
