Manufacture |
GE |
|
Model |
DS2020PDMAG6 |
| PN No. |
DS2020PDMAG6 |
|
Catalog |
MKVIe |
|
Description |
POWER DISTRIBUTION BOARD |
| Origin | U.S.A./CN |
| HS CODE |
85389091 |
| Dimension |
16.8*15*5.5 (CM) |
| Weight | 4.5kg |
Description:

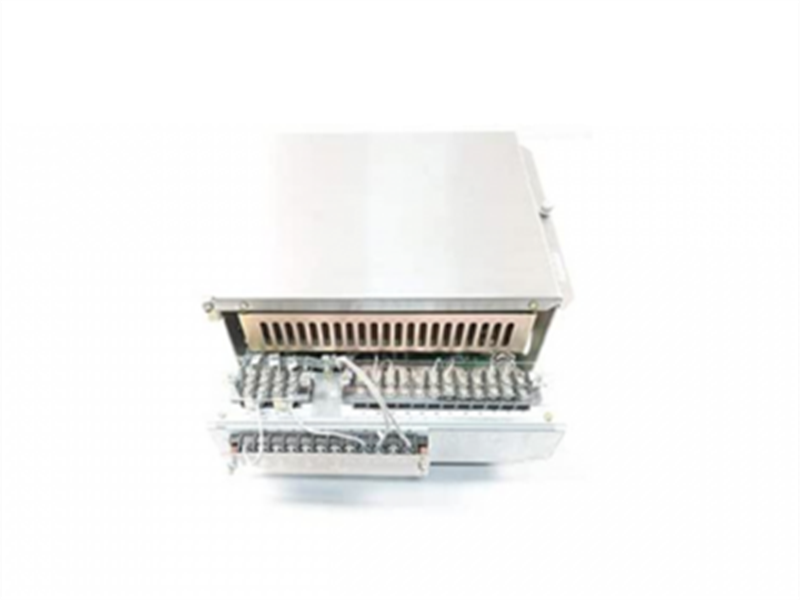

Ds2020PDwAG6is a Power Distribuion Module manuiactured bv GeneraElectric as pat otMarky used in gas turbine contolmanaementsvstems. he Power istibutonModule (PoM) provides 125 Vdc and 15 Vac (or 230V ac) to the Mark vlsystem for allracks and terminal boards. There is a second version ofthe PDM forthe controlcabinet inthose systems using remote l/O cabinets.
Parameters:
Product Name: DS2020PDMAG6
Input Voltage: 125V DC or 115V AC (or 230V AC).
Output Voltage: 125V DC.
Output Current: Maximum 2 Amps per channel.
Operating Temperature Range: -40°C to +70°C.
Board Type: Power Distribution Module
Assembly Variant: 6
Features:
- High Reliability
Enhanced system stability and reliability through measures such as providing backup power and reducing EMI noise, ensuring normal operation even in harsh environments, exhibiting durability and stability.
- Modular Design
Facilitates installation and maintenance.
- Hot-Swap Functionality
Allows module replacement without interrupting system operation.
- Built-in Communication Functionality
Supports data transmission with the control system.
- Versatility
Applicable to all racks and terminal boards, facilitating integration and deployment in different systems, reducing user procurement and maintenance costs.
- Maintainability
Supports various maintenance and diagnostic functions, facilitating troubleshooting and repair, minimizing system downtime, and improving production efficiency.
Frequently Asked Questions:
1.What does this Ds2020PDMAG6 Module's normal protective PcB coating style involve in specific?
This Ds2020PDMAG6 device's normal PcB coating is a thick laver of rudimentary PcB coatine that envelops and protects individual Ds2020PDMAG6 Modulecomponents based on manufacturer-identified functional priority
2.Why is the part number for the DS2020PDMAG6 shorter than other DS2020 models?
The DS2020PDMAG6 has no backwards compatibility or optional specs that requireadditional characters in the part number.
3.What character indicates the assembly variant number of the DS2020PDMAG6?
In this case, it is the "6" at the end of the part number.
Datasheet Link:
DS2020PDMAG6 GE Mark V DS2020 Power Distribution Module PDF Datasheet
