Manufacture |
EMERSON/EPRO |
|
Model |
KJ2005X1-BK1 |
| PN No. |
12P4688X042 |
| Catalog | N/L |
|
Description |
EMERSON DELTAV KJ2005X1-BK1 SX CONTROLLER 12P4688X042 REV G SE3007 |
| Origin | U.S.A./Germany |
| HS CODE |
85389091 |
| Dimension |
22*14*5 (CM) |
| Weight | 1kg |
Description:

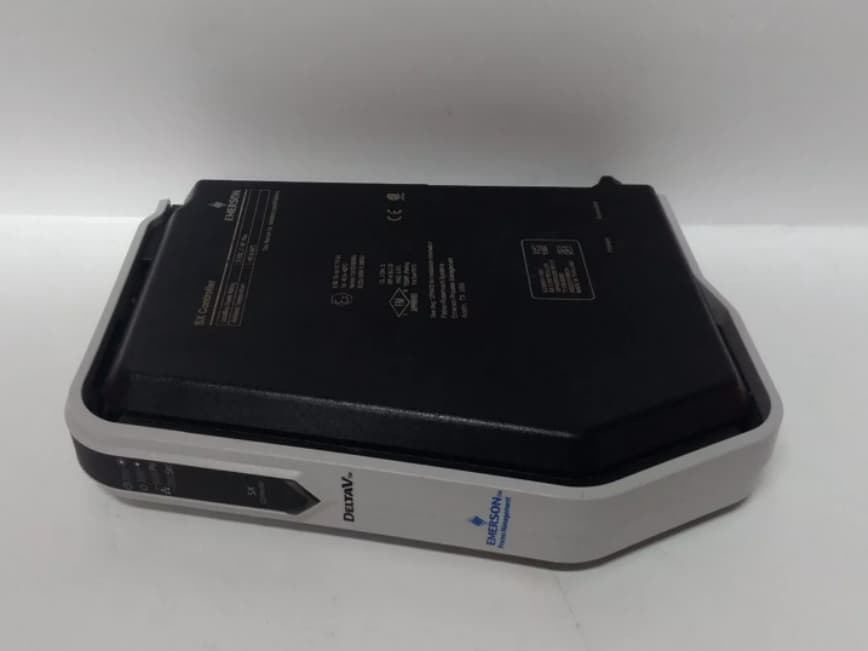

KJ2005X1-BK1
Product Type :Emerson DeltaV SX Controller (SE3007)
Emerson Process Management, Fisher Rosemount Systems

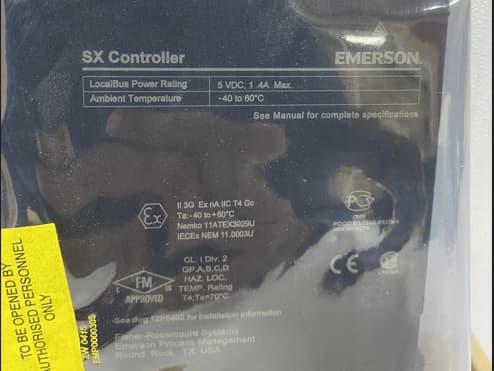

Catalog Description: DeltaV SE3007 SX Controller, LocalBus Power Rating 5VDC, 1.4A Max., Ambient Temperature -40 to 60 degrees C
Alternate Part Numbers: KJ2005X1-BK1, KJ2005X1BK1, 12P4688X032 and 12P4688X042
Common Typographical Errors: SE3OO7
The MQ Controller provides communication and control between the field devices and the other nodes on the control network. Control strategies and system configurations created on earlier DeltaV™ systems can be used with this powerful controller. The MQ Controller provides all the features and functions of the MD Plus Controller, with the same amount of memory. The control languages executed in the controllers are described in the Configuration Software Suite product data sheet.
specificities
1.Increases productivity
The MQ Controller is as quick as the MD Plus Controller andprovides the same configurable memory as the MD Pluscontroller. The Ethernet ports are full duplex, 100MB/secondmaximum throughput. The results are lower CPU utilizationand higher capacity for control strategies.
2.Self-addressing
The DeltaV controller is unique in its abilityto automatically identify itself to the DeltaV control network.When the controller is powered up, it is automatically assigned a unique address—no dip switches, no configuring—just plug and play!
3.Self-locating
A controller’s physical location is easy to find. LEDs on the face of the controller can be made to flash, providing a strong visual clue.
4.Automatic I/O detection
The controller can identify all I/O interface channels located on the subsystem. As soon as an I/O interface is plugged in, the controller knows the general characteristics of the field devices managed by that I/O interface. This reduces the no value engineering associated with configuration.
5.Connect to Electronic Marshalling and Wireless I/O
Starting in DeltaV v14.3, CHARMs and wireless devices connected through CHARM I/O Cards (CIOC) and Wireless I/O Cards (WIOC) can be assigned to the MQ controller. This makes it easier than ever to add I/O to an existing controller by simply adding a CIOC and/or WIOC to the DeltaV Area Control Network.
6.Easy to use
Total control. The controller manages all control activities for the I/O interface channels. It also manages all communication functions for the communications network. Time stamping, alarming, and trend objects are also managed within the controller. The controller executes all control strategy with execution speeds up to every 100 ms.
7.Data protection
All online changes made to control parameters are automatically stored for later upload into the engineering database. This way, the system always retains a complete record of all the data that has been changed online.
FAQ & Contact:
Q: Are you a trading company or a manufacturer?
A: We are a trading company.
Q: What is your lead time?
A: It usually takes one to three days if we have it in stock. If the goods are not in stock, you need to negotiate.
Q: Does your company provide samples? Is it free or do you charge extra?
A: It depends on the goods you need and the quantity you order.
Q: What are your terms of payment?
A: 100% T/T before shipping. If the quantity is large, we can negotiate.
Datasheet Link:
KJ2005X1-BK1 Emerson Signal Conditioning Isolation Transmitter PDF Datasheet
