Manufacture |
EMERSON/EPRO |
|
Model |
KJ3221X1-BK1 |
| PN No. |
12P4704 |
| Catalog | N/L |
|
Description |
EEMERSON DELTAV KJ3221X1-BK1 AO CARD: 8 CH 4-20 MA HART 12P4704 SE4005S2B1 |
| Origin | U.S.A./Germany |
| HS CODE |
85389091 |
| Dimension |
22*14*5 (CM) |
| Weight | 1kg |
Description:

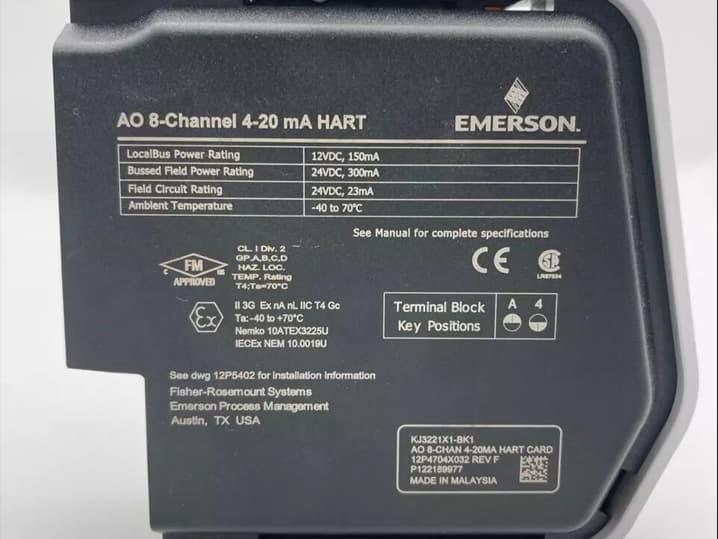

KJ3221X1-BK1
Product Type : Emerson DeltaV Analog HART Module
S-Series.
8-Channel.
4-20 mA.
Local Bus Power: 12 VDC at 150 mA.
Bussed Field Power: 24 VDC at 300 mA.
Field Circuit: 24 VDC at 23 mA/Channel.
Ambient Temperature: -40°C to +70°C.
Shock: 10g 1⁄2 Sinewave for 11 msec.
Vibration: 1mm Peak to Peak from 2 to 13.2Hz; 0.7g from 13.2 to 150Hz.
Airborne Contaminants: ISA-S71.04 –1985 Airborne Contaminants Class G3.
Relative Humidity: 5 to 95% Non-Condensing.
Terminal Block: Uses a terminal block key A4 position.
Communication Protocol: Uses the HART (Highway Addressable Remote Transducer) Protocol.
Hazardous Atmosphere Ratings: It is rated for Hazardous Atmosphere II 3G Ex nA nL IIC Gc.
Removal and Insertion: Field power supplied to this device, either at the field terminal or as bussed field power through the Carrier, must be removed before removing or connecting the device. This unit cannot be removed or inserted with system power energized.
Maintenance and Adjustment: This unit contains no user-serviceable parts and should not be disassembled for any reason. Calibration is not required.
Intended use: Designed for use in industrial automation systems. It is used to communicate with smart field devices and supports both analog and digital signals. This unit is particularly useful in hazardous environments due to its specific ratings.
Hazardous Atmosphere Certifications:
ATEX Certification:
II 3G Ex ec IIC Gc
FM19ATEX0173U
IECEx FMG 19.0019U
IECEx Certification:
II 3G Ex nA nL IIC Gc
Nemko 10ATEX3225U
IECEx NEM 10.0019U
FM Approvals:
CL. I Div. 2 GP. A,B,C,D
CL. I Zone 2 AEx/Ex ec IIC Gc
FM17US0286U, FM17CA0145U
Power Specifications
LocalBus power rating: 12 VDC at 150 mA
Bussed field power rating: 24 VDC at 3.2 A
Field circuit rating: 24 VDC at 100 mA/channel
Environmental Specifications
Ambient Temperature: -40 to 70℃
Shock: 10g ½ Sinewave for 11 msec
Vibration: 1mm Peak to Peak from 5 to 16Hz;0.5g from 16 to 150Hz
Airborne Contaminants: ISA-S71.04 –1985 Airborne Contaminants Class G3
Relative Humidity: 5 to 95% Non-Condensing IP 20 Rating
Terminal block key position: B4
FAQ & Contact:
Q: Are you a trading company or a manufacturer?
A: We are a trading company.
Q: What is your lead time?
A: It usually takes one to three days if we have it in stock. If the goods are not in stock, you need to negotiate.
Q: Does your company provide samples? Is it free or do you charge extra?
A: It depends on the goods you need and the quantity you order.
Q: What are your terms of payment?
A: 100% T/T before shipping. If the quantity is large, we can negotiate.
Datasheet Link:
KJ3221X1-BK1 Emerson Signal Conditioning Isolation Transmitter PDF Datasheet
