FC-FANWR-24R HONEYWELL Fan unit 24 V DC with readback

Description:

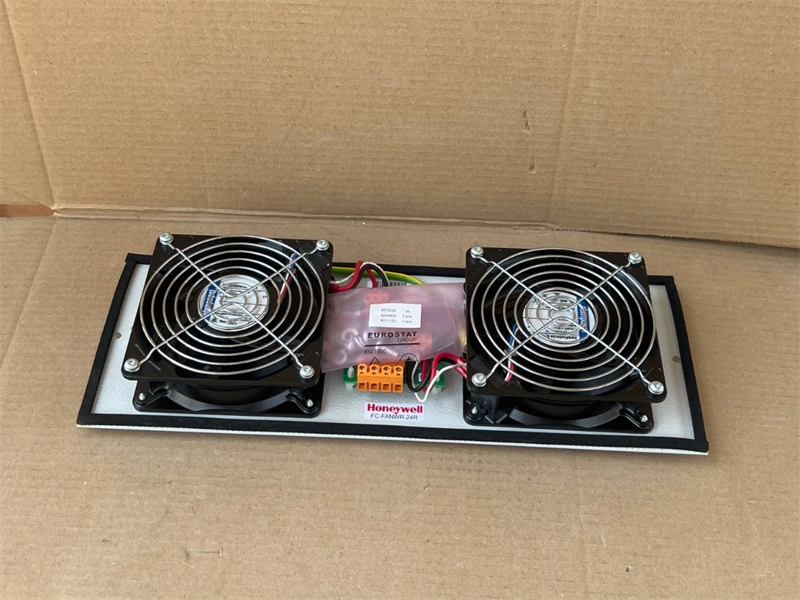

The 24 V DC fan unit (FANWR-24R) consists of two fans and a printed circuit board (PCB) 07209 on a mounting plate.

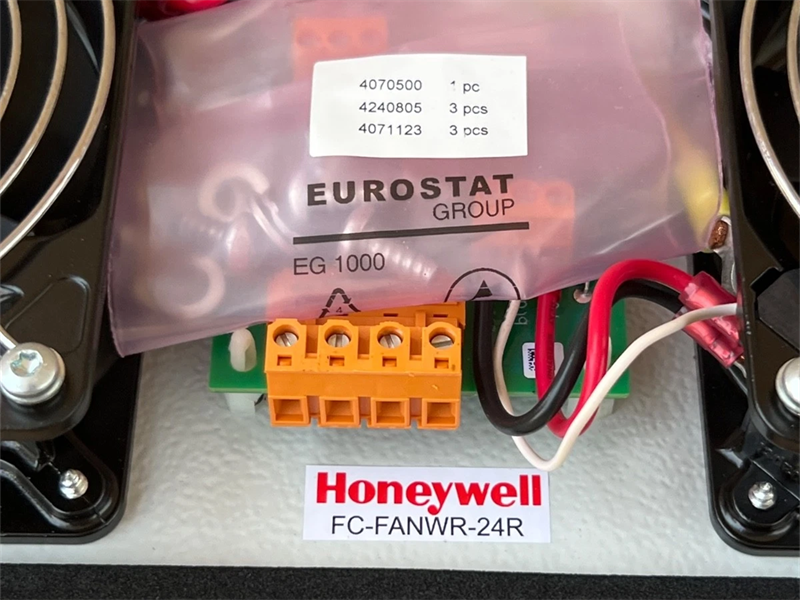

The external 24 V DC power and readback contact wiring for the fan unit terminates on a 4 pole connector which slots into the fan unit.

Electronics in the fan unit generate the signals to indicate the fan status. If the speed of a fan is above minimum, a green LED next to that fan illuminates to indicate this. If both fans are above minimum speed the readback contact closes.

Finger guards are mounted on both sides of the fans.

The "Layout of the FANWR-24R fan unit and direction of air flow" below shows the direction of airflow and the bottom and side view of the fan unit.

Specifications:

Product No. : FC-FANWR-24R

Approvals: CE; UL; FM
Power requirements: 24 V DC 9.5 W
Voltage range: 12-29 V DC

Nominal speed: 3.200 RPM

Minimum speed: (to close readback contact) 1.500 ± 100 RPM

Wire stripping length: 7 mm
Tightening torque: 0.4-0.5 Nm
Type of screwdriver: SD 0.6 X 3.5 -DIN 5264

Frequently Asked Questions:
1.What is the DNominal speed for FC-FANWR-24R?
3.200 RPM

2.What is the payment term?
Only wire transfer

3.When does the warranty period start?
One year from the time the client receives the goods.
