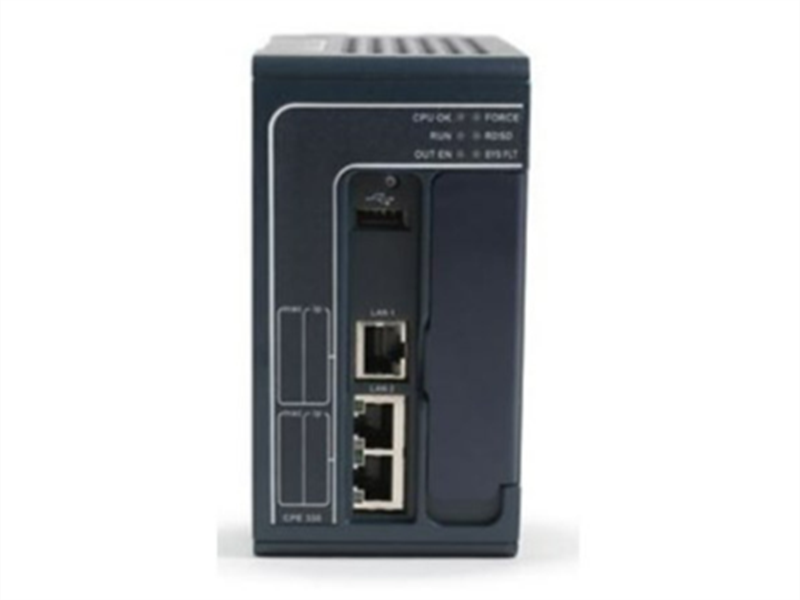

IC695CPE330 GE Fanuc 1GHz Dual-Core Microprocessor

Description:

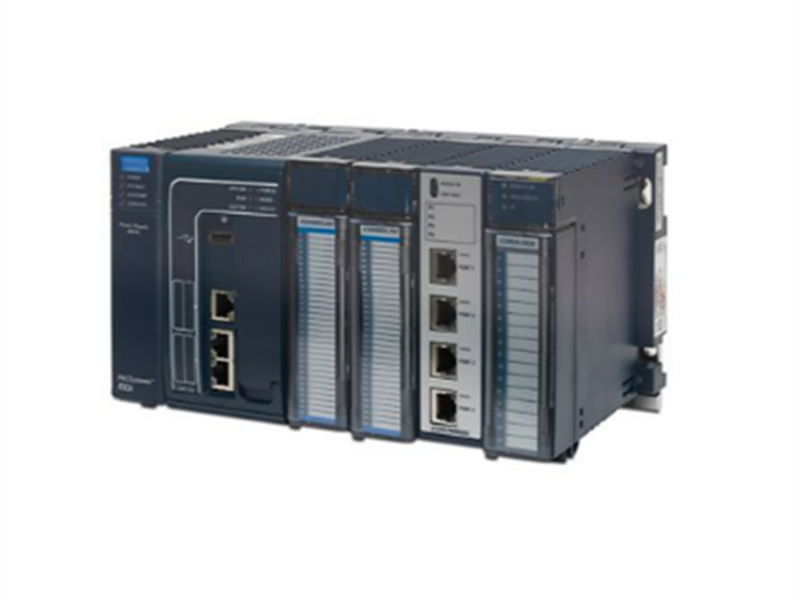

The GEFanuc/Emerson Automation PACSystems RX3i controller IC695CPE330 is a high-performance, high-reliability central processing unit module featuring a dual-core processor and advanced redundancy options, delivering enterprise-class performance.

It is primarily used in industrial automation and control systems. Employing advanced processor technology, it boasts powerful computing capabilities and data processing speeds, enabling rapid response to various system commands and requests, ensuring system real-time performance and efficiency. It is ideally suited for high-availability systems requiring gigabit networks and robust I/O processing capabilities.

Specifications:
MTBF: 55 000 hours
I/O Scan Time: 0.8 ms
Battery‑Backed RAM Hold‑Up: 48 hours
Heat Dissipation: 30 BTU/h
Altitude Rating: up to 2 000 m

Three Ethernet ports: 10/100/1000 (two of which are switchable ports)
One USB port: USB-A 2.0
One memory card slot: CFast
Ambient temperature: 0 to 60°C
Features:
-Features Rx3i Hot Standby Redundancy CPU with support for PROFINET I/O using IC695PNC001 PROFINET controllers

-Features Rx3i Hot Standby Redundancy with Ethernet (EGD) and Genius I/O
-Able to transfer user programs and/or data to and from USB 2.0 A type Removable Data Storage Devices (RDSDs)
-Two independent 10/100/1000 Ethernet LANs
-LAN1 attaches via a dedicated RJ-45 connector
-LAN2 attaches via a pair of internally-switched RJ-45 connectors
-Ethernet Global Data (EGD) Class 1 supported on both LANs
-Supports two independent Redundant IP addresses, one for each of the embedded Ethernet LANs
-Achilles Level 2 Communications Certification
