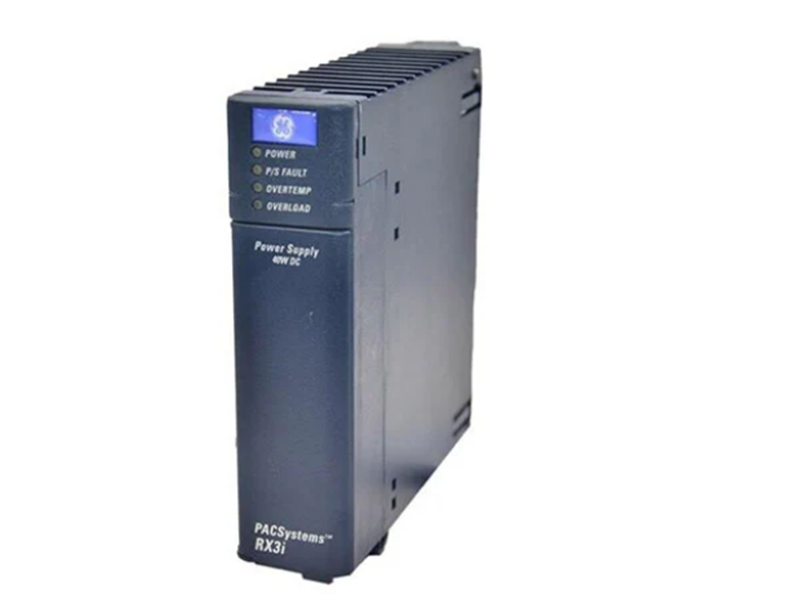

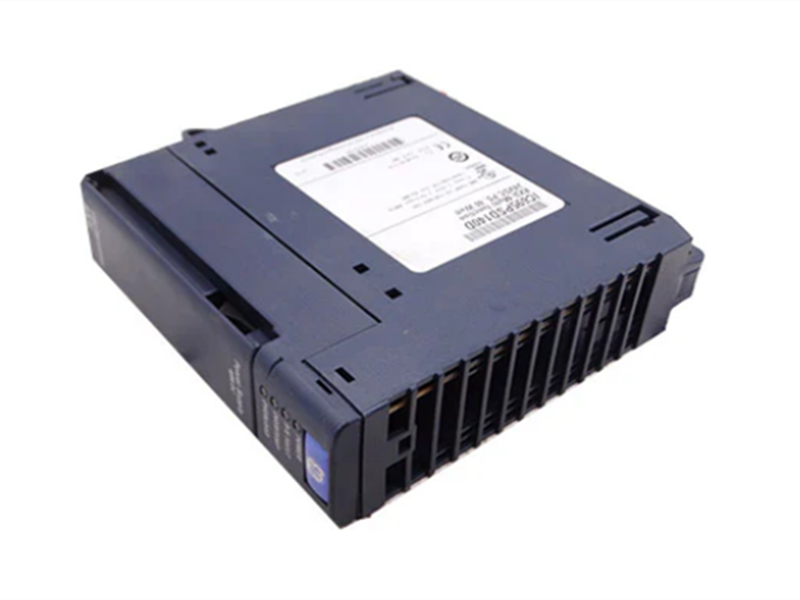

IC695PSD140 GE 24-volt DC PowerSupply Module

IC695PSD140 GE 24-volt DC PowerSupply Module in stock.

Item NO.:
IC695PSD140
Payment:
T/T
Market Price:
$300
Product Origin:
U.S.A.
Color:
Depends on material
Shipping Port:
Xiamen
Lead Time:
5-7 days
Goods Stock:
2
Product weight:
0.7kg

Inquiry now

product introduction

Manufacture	GE
Model	IC695PSD140
PN No.	IC695PSD140
Catalog	MKVIES
Description	24-volt DC PowerSupply Module
Origin	United States (US)
HS CODE	85389091
Dimension	7.113.313.7 (CM)
Weight	0.7 kg

Description:

The GE PACSystem RX3i IC695CRU320 redundant processor is a core component of GE Automation's high-performance programmable automation controllers (PACs). The IC695CRU320 is a redundant central processing unit (CPU) designed for industrial automation applications requiring high availability and reliability.

With its redundant architecture, the GE PACSystem RX3i IC695CRU320 enables seamless switching of control systems. When the primary processor fails, the backup processor automatically takes over control tasks, minimizing system downtime and improving productivity and equipment safety.

The IC695CRU320 boasts powerful processing capabilities, large memory capacity, and rich communication interfaces to meet the needs of various complex industrial control applications.

The IC695CRU320 features two independent serial ports and an Intel Celeron-M microprocessor. It is equipped with 64 MB of non-volatile flash memory, supplemented by 64 MB of battery-powered random access memory (RAM). It also supports local and remote rack expansion. This CPU uses a serial backplane design and is compatible with expansion modules in the 90-30 series I/O product line (but not with mainframes). The IC695CRU320 uses Proficy Machine Edition, a development environment common to all GE Fanuc controllers. Proficy Machine Edition is designed for creating, running, and diagnosing operator interfaces, motion control, and control applications.

Parameters:

Rated Voltage: 24 VDC
Input Voltage Range: 18 to 30 VDC
Input Power: 60 watts maximum at full load
Output Power

40 Watts maximum total of both outputs.
5.1 VDC = 30 watts maximum
3.3 VDC = 30 watts maximum
Maximum output power depends on ambient temperature, as shown in the figure.

Output Voltage

5.1 VDC: 5.0 VDC to 5.25 VDC (Nominal 5.1 VDC)
3.3 VDC: 3.2 VDC to 3.465 VDC (Nominal 3.3 VDC)

Output Current

5.1 VDC: 0 to 6 Amps
3.3 VDC: 0 to 9 Amps

Isolation: None
Ripple (All Outputs): 50 mV
Noise (All Outputs): 50 mV
Terminals: Each terminal can connect to one 14 AWG to 22 AWG wire.
Terminal Current: 6 Amps
PSD140 Series Power Supply Quantity: Up to 4
PSD140 Power Supply Quantity in General Purpose Backplane: Up to 4

Features:

Multi-purpose unit

Suitable for redundancy and load balancing applications

Output ports

Features three 5.1V DC output ports, one 24V DC relay output port, and one 3.3V DC output port for internal use. All ports are compatible with RX3i modules.
