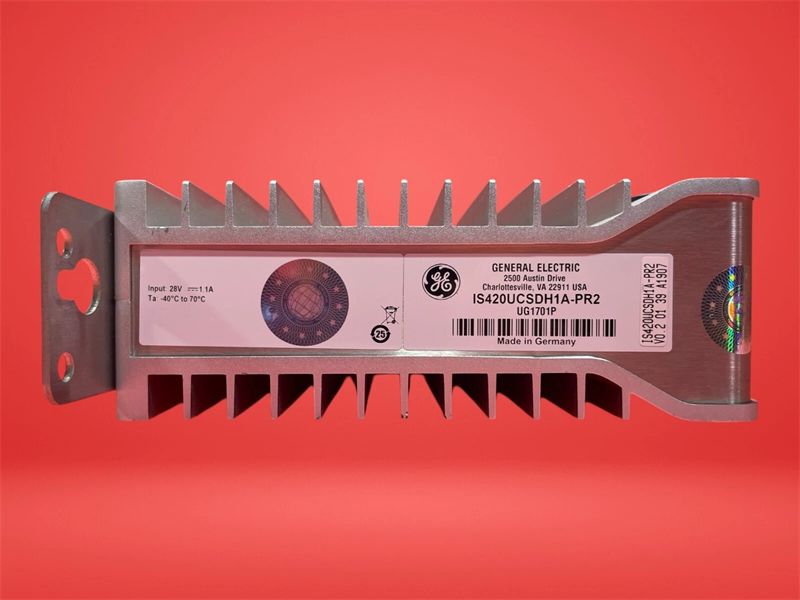

IS420UCSDH1A GE Mark VIe Controller Module

Description:

The IS420UCSDHIA is a USS controller module developed by General Electric (GE). It belongs to the Mark VIe Control Safety Systems series.

The UCSB controller is a stand-alone computer that executes application-specific control system logic. Unlike traditional controllers, the UCSB controller does not contain any application program. Similar to the UCSC controller, although the hardware differs, the software required to run the controller is almost identical.

Furthermore, each controller connects to all networks, providing all input data. Its hardware and software architecture ensures that no application input is lost in the event of a power outage for maintenance or repair.

SPECIFICATIONS:
Processor: Intel EP80579, 600 MHz
Memory: 256 MB DDR2 ECC + 2 GB Flash
Power Supply: 18-30V DC (nominal 24V)
Communications: IONet, RS-485, Ethernet
Operating Temperature: -40°C to +85°C
Ambient Temperature Range: -22 to 149°F

Minimum Voltage: 18 VDC.
Maximum Voltage: 30 VDC.
Nominal Power Rating: 24 VDC and 28 VDC.
Maximum Current Rating: 1.5 ADC.

Features:

1.Excellent real-time control capabilities and stability

It can respond quickly and accurately to various input signals and execute corresponding operations according to preset control logic. Meanwhile, its stable hardware and software architecture ensures high reliability during long-term operation, thereby reducing system failures and downtime.

2.The IS420UCSBH1A controller module supports multiple control strategies, including sequential control, process control, and motion control. It can also be integrated with other devices and systems to achieve data sharing and collaborative operation.

3. This module also has self-diagnostic functions, capable of monitoring the system's operating status in real time and issuing timely alarms in case of faults, facilitating troubleshooting for users.

4. The IS420UCSBH1A controller module supports multiple communication protocols and interfaces, such as Ethernet, RS-232, and RS-485. This allows it to easily connect and exchange data with other devices and systems, enabling remote monitoring and management.

5. This controller module adopts a modular design, allowing for expansion and customization according to actual needs. Users can select different input/output modules, communication modules, and expansion modules according to specific application scenarios to meet specific control requirements.

6. Data Acquisition
Acquires data from sensors and devices for monitoring and analysis.

7. Flexible Configuration
Configurable to suit specific application needs and diverse industrial environments.

8. Security
Integrated safety features ensure the reliability and security of the control system.

Frequently Asked question:
1.Does the IS420UCSDH1A support redundancy?
No, this is not a supported feature of this module.
2.Does the IS420UCSDH1A have any backup features?
Yes, the IS420UCSDH1A supports restore-only backup functionality via a non-encrypted, 4GB USB2.0 flash device.

Datasheet Link:

IS420UCSBH1A GE Controller Module PDF Datasheet
