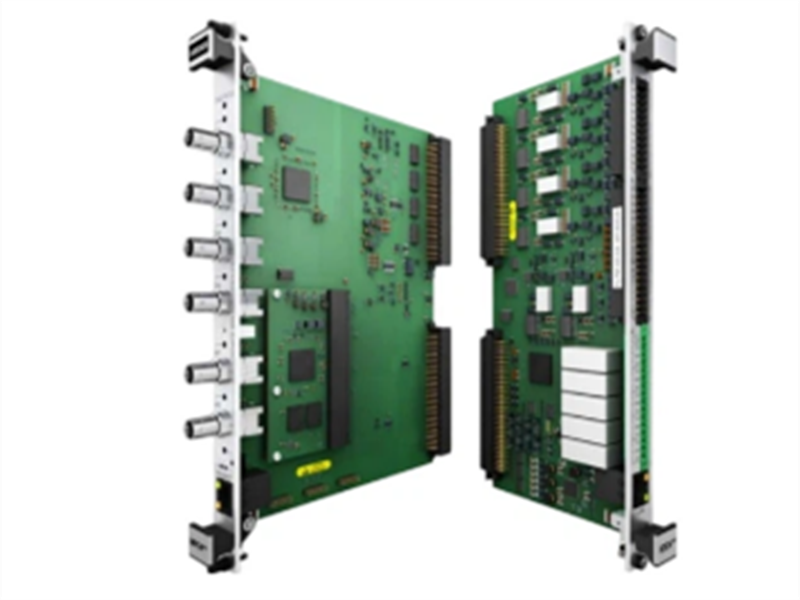

IOC4MK2 600-043 Vibration Machinery Protection And ConditionMonitoring Module

Description:

The IOC4Mk2 module is an input/output module in the Meggitt VM600Mk2 machine monitoring system. It is always used in pair with the MPC4Mk2 module. Its primary function is to acquire signals from field devices and send control commands to the MPC4Mk2 monitoring module.

This module can be applied to the protection and condition monitoring of rotating machinery, such as vibration and combustion monitoring.

This single-width module occupies one rack slot and is mounted at the rear of the VM600Mk2 rack, directly opposite the MPC4Mk2 monitoring module, and is directly connected to the rack backplate via two connectors.

The IOC4Mk2 input/output module is equipped with five relays. One general-purpose circuit fault relay (FAULT) is used to indicate faults in the MPC4Mk2 1OC4Mk2 module. The other four relays can be configured differently depending on application requirements, typically normally open (NE) or normally closed (NDE), and locked or unlocked states. These relays are driven by the control circuitry of the VM600Mk2 system. When a fault is detected, the circuitry automatically drives all OC4Mk2 and RLC16Mk2 relays, as well as the 1OC4K2 analog output, to a safe state, thereby ensuring that the relays are always de-energized when a component fails.

Features:

-Four dynamic channels and two auxiliary channels, configurable as a tachometer or DC input.

-VM60oMk2 system safety line, driving all system relays to a safe state.

-Diagnostic functions (built-in self-test (BIST)) provide continuous feedback on module health status.

-Individually configurable inputs (with sensor power output), channel filters, processing, and outputs – supporting synchronous data acquisition (fixed frequency or order tracking).

-High-resolution spectrum (FFT) for status monitoring: up to 6400 lines per 100 milliseconds.

-Up to 10 processed outputs per channel.

-Multiple alarms can be set for each processed output, with configurable limits, hysteresis, and time delays.

-AND, OR, and majority voting logic functions for combining alarm and status information.

Parameters:

Number of channels : 4 (independent channels)
Voltage inputs

• DC measurement range :0to+20Vpc or 0to-20Vpc.
• AC measurement range : ±20 VPEAK-PEAK
• AC + DC measurement range: ±24 VPEAK-PEAK
• Common-mode voltage range : -50to+50VDC
• Common-mode rejection ratio (CMRR) :>55 dB, up to 60 Hz.
•                                                         >60 dB, from 45 to 65 Hz.

• Dc measurement range :0 to 35 mA.
• AC measurement range : 30 mAPEAK-PEAK
• AC + DC measurement range : +50 mApEAK-PEAK
• Frequency bandwidth : DCto 20 kHz

• Amplitude : +1% of full scale
• Phase :+1°from 10 Hzto 2kHz.
•              :+15° from 2 to 20 kHz
• DC  :  + 0.85% of full scale for voltage inputs (0 to 10 Vpc).
•          + 1.25% of full scale for current inputs (0 to 20 mA).
• Dynamic input range:>80 dB, from 3 Hz to 20 kHz
