IS420UCSCH2A-C-V0.1-A GE Mark VIe, Quad Core Controller

Description:

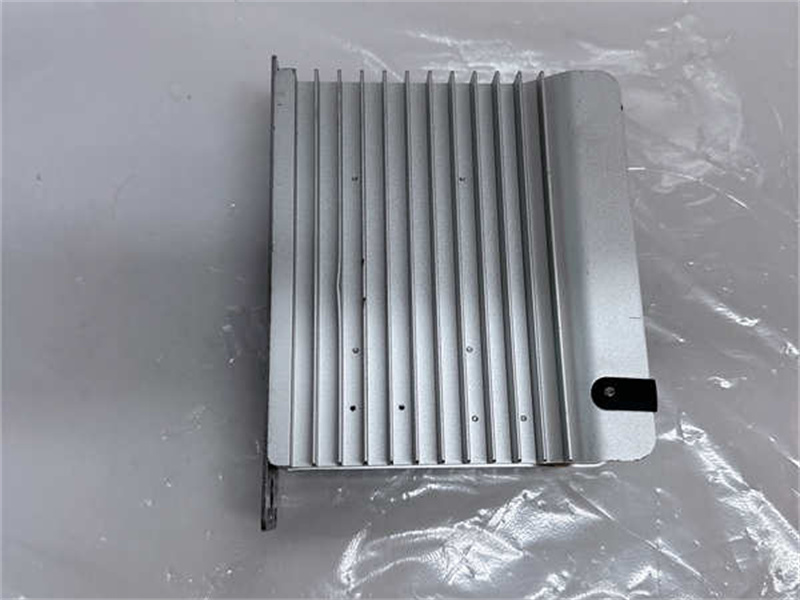

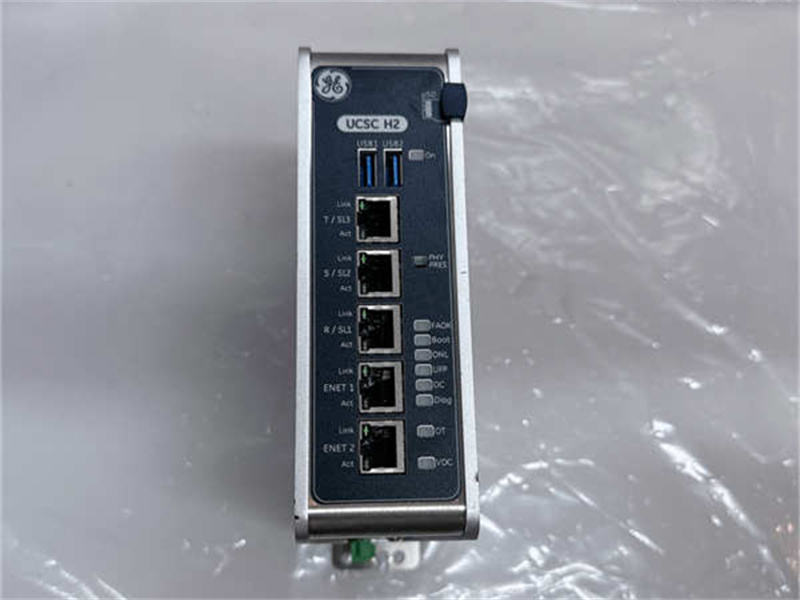

IS420UCSCH2A is a processor/controller developed by General Electric for Mark VI systems. The Mark VI platform, designed to manage gas or steam turbines, was released by ge as part of the Speedtronic line. It has an HMI(human-machine interface) with software designed for running heavy-duty turbines, such as the CIMPLICITY graphical interface. The IS420UCSCH2A is a separate boxed assembly with a front panel to allow communication connections, two screws mounted on the rear edge, and grille openings on three sides to allow air flow. The controller is designed for mounting bases in cabinets. Up to three components can be installed next to each other, forming a compact layout for easy service of triple-redundant systems.

Features:
-Universality: This module is suitable for various application scenarios and can be connected to various sensors and actuators to achieve signal acquisition and output.  
Analog signal conversion: 
-Input: It can convert analog signals into digital signals for processing by controllers or other digital devices.
-Output: Digital signals can also be converted into analog signals to drive analog devices.

-Signal processing function: It has the ability to filter, amplify, compare and other processing of input analog signals to ensure the accuracy and reliability of the signal. 
-Communication interface: Supports multiple communication protocols such as Modbus, Profibus, etc., facilitating communication with other devices or control systems. 
-Reliability and stability: Using high-quality materials and manufacturing processes, and undergoing strict testing and quality control, it has high reliability and stability.
Specification:

Product Model:    IS420UCSCH2A-C-V0.1-A
Product Type:    Dual-core Controller Module
Processor:    Dual-core
Operating System:    QNX Neutrino (optional)
Memory:    2 GB RAM (possible)
Ethernet Ports:    Multiple ports, supporting various redundancy applications
Communication Protocol:    Ethernet, supporting various industrial protocols
Operating Temperature:    0°C to 60°C
Storage Temperature:    -40°C to 85°C
Humidity:    5% to 95% non-condensing
Power Requirements:    12V DC or 24V DC
Mounting Method:    Panel Mount
Frequently Asked Questions:

1.The IS420UCSCH2A-C-V0.1-A module cannot communicate with the I/O module. What could be the cause?
Cause 1: The optical fiber or cable is damaged.
-----Replace the optical fiber and check the port cleanliness.
Cause 2: The I/O module is not powered or configured correctly.
-----Verify the power and address switches on the I/O module.
Cause 3: The controller database is out of sync.
-----Re-download the database in ToolboxST.
2.How do I determine if a module needs to be replaced?
-The indicator light is unresponsive, and the power supply is normal.
-ToolboxST cannot recognize the module (after eliminating software configuration issues).
-The hardware fault message persists after multiple resets.

Datasheet Link:

IS420UCSCH2A-C-V0.1-A GE Mark VIe, Quad Core Controller PDF Datasheet
