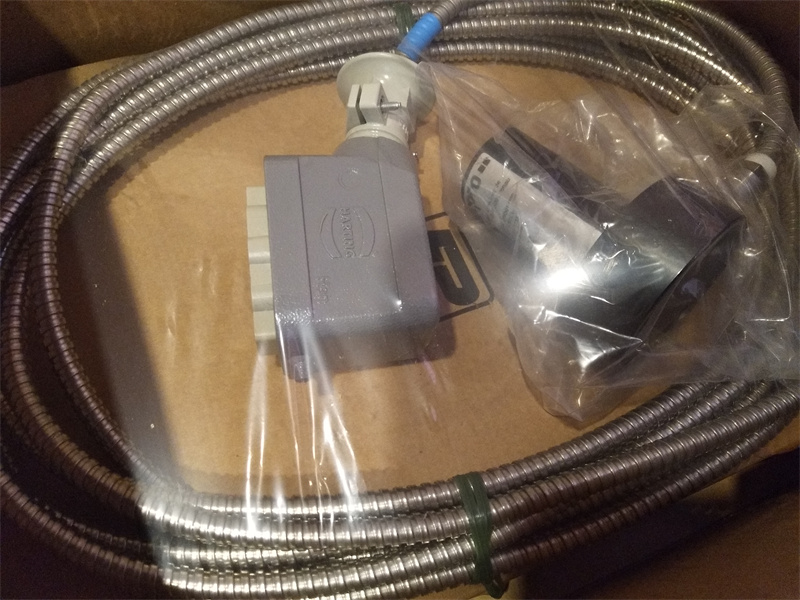

PR9268/303-000 EPRO, Electrodynamic Velocity Sensor

Description:
PR9268/303-000 is an Electrodynamic Velocity Sensor.

Model No.: PR9268/303-000

Measurement Type: Horizontal, ± 10°
(without lifting/sinking current)

Adapter Plug X: 0 With

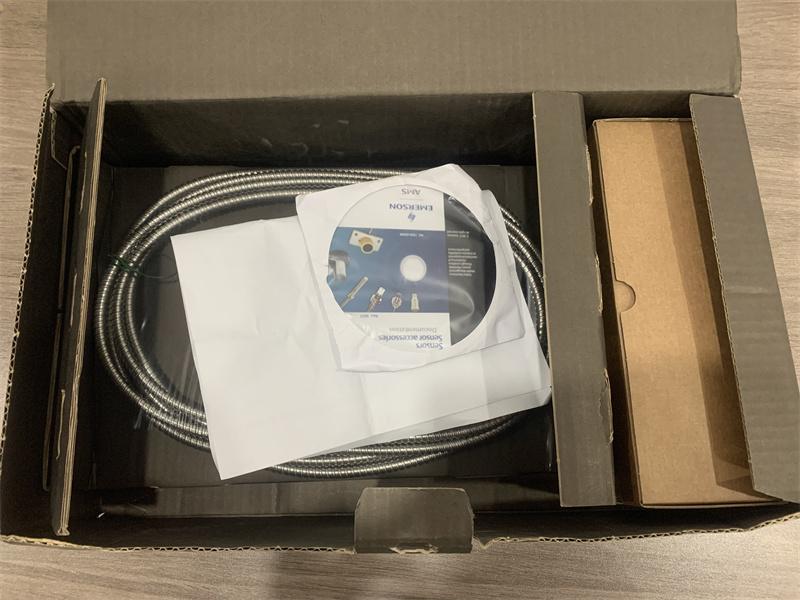

Cable Length X: 10m, Armored

Cable End X: 1 Open Cab. End

Mechanical velocity sensor for absolute vibration measurement of critical turbomachinery applications such as steam, gas and hydro turbines, compressors, pumps and fans to measure case vibration.

The electro-dynamic transducers PR 9268/01x-x00, PR 9268/20x−x00, PR 9268/30x−x00, PR 9268/60x−000, and PR 9268/70x−000 serve the measurement of absolute vibrations. They operate on the seismic measurement principle. A measuring coil, suspended on membrane springs, is the seismic mass of the transducer. By operating the transducer above the resonance frequency, the seismic mass will remain at rest. The relative motion between the transducer housing (moving with the measuring object) and the resting coil generates a voltage signal proportional to the vibration velocity.

This operating manual applies for the following absolute vibration transducers:
• PR 9268/01x-x00
• PR 9268/20x-x00
• PR 9268/30x-x00
• PR 9268/60x-000
• PR 9268/70x-000
• PR 9268/20x-100-OPR
• PR 9268/30x-100-OPR
• PR 9268/20x-100-RAD
• PR 9268/30x-100-RAD
• PR 9268/60x-100-RAD
• PR 9268/70x-100-RAD

Frequently Asked Questions:

1.What is the payment term?
Wire transfer only.

2.When does the warranty period start?
One year from the time the client receives the goods.

Datasheet Link:

PR9268/301-100 EPRO, Electrodynamic Velocity Sensor PDF Datasheet
