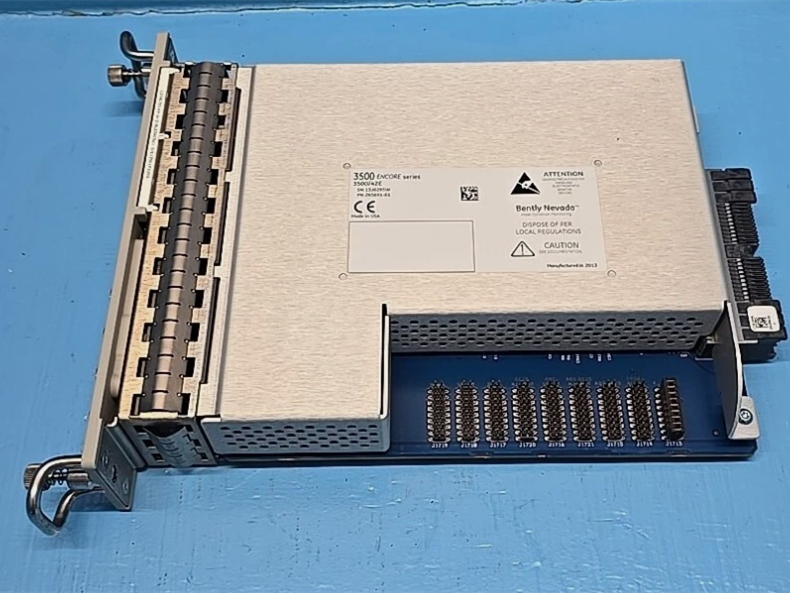

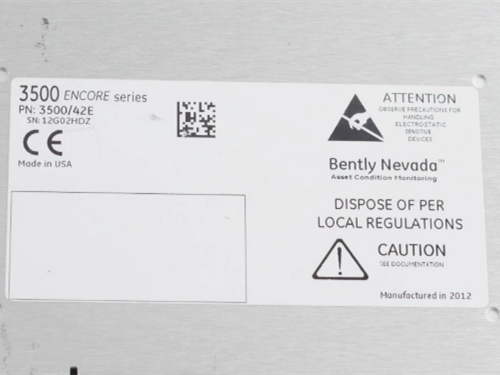

3500/42E Bently Nevada 285691-01 Vibration Monitor Module

3500/42E Bently Nevada 285691-01 Vibration Monitor Module in stock.

Item NO.:
3500/42E
Payment:
T/T
Market Price:
$2500
Product Origin:
U.S.A.
Shipping Port:
Xiamen
Lead Time:
5-7 days
Goods Stock:
2
Product weight:
1.45 kg

Inquiry now

product introduction

Manufacture	Bently Nevada
Model	3500/42E
PN No.	285691-01
Catalog	3500 ENCORE System
Description	Transient Data Interface
Origin	U.S.A.
HS CODE	85389091
Dimension	20.84.8312.7(CM)
Weight	1.45 kg

Description:

The Bently Nevada 3500/42E Vibration Monitor, part number 285691-01, is a key component in the 3500 Series machinery protection system. It processes signals from proximity and seismic transducers, providing continuous monitoring of vibration and shaft position. This monitor is essential for real-time machine protection and condition monitoring, ensuring the smooth operation of critical assets.

The 3500/42E is an Enhanced Vibration Monitor designed for integration into a Bently Nevada 3500 Series rack. It offers four channels of continuous monitoring and is fully programmable for a wide range of applications.

The 3500/42E Vibration Monitor is a 4-channel monitor that accepts input from proximity and seismic transducers, conditions the signal to provide various vibration and position measurements, and compares the conditioned signals with user-programmable alarms. The user can program each channel of the 3500/42E using the 3500 Rack Configuration Software to perform any of the following functions:
• Radial Vibration
• Thrust Position
• Differential Expansion
• Shaft Absolute
• Eccentricity
• Acceleration
• Velocity

Specifications:

Inputs Signal: Accepts from 1 to 4 proximity, velocity or acceleration transducer signals.
Input Impedance: 10 kΩ .
Power Consumption: 6.8W Typical
Output Impedance: 499 Ω
Transducer Power Supply : -24 Vdc
Voltage Compliance(current output): 0 to +12 Vdc range across load. Load resistance is 0 to 600 Ω.

Resolution

0.3662 µA per bit
±0.25% error at room temperature
±0.7% error over temperature range.
Update rate 100 ms or less.

Filter Quality

High-Pass: 2-pole (40 dB per decade, 12 dB per octave).
Low-Pass: 4-pole (80 dB per decade, 24 dB per octave).
Accuracy: Within ± 0.33% of full scale typical, ± 1% maximum. Exclusive of filters.
Operating Temperature: -20°C to +65°C (-4°F to +150°F)
Storage Temperature: -40°C to +85°C (-40°F to +185°F).
Humidity: 95%, noncondensing.

Features:

Continuous Monitoring

Tracks vibration and shaft position in real-time, crucial for machinery protection.

Four Channels

Provides simultaneous monitoring of multiple channels for enhanced coverage.

Enhanced Diagnostics

The 'E' in the model signifies enhanced capabilities for more comprehensive diagnostics.

Seamless Integration

Fully compatible with Bently Nevada 3500 Series racks.

Programmable

Flexible setup for diverse monitoring applications across various industries.

Figures and Tables:

Frequently Asked Questions:

1.What is the difference between the 3500/42E and the standard 3500/42?
The 'E' in 3500/42E stands for "Enhanced". It signifies an upgraded version of the standard 3500/42 module, with additional features and improved diagnostics. The 3500/42E offers enhanced capabilities compared to the standard version, making it suitable for more complex monitoring and diagnostics applications.

Datasheet Link:

3500/42E Bently Nevada 285691-01 Vibration Monitor Module PDF Datasheet
