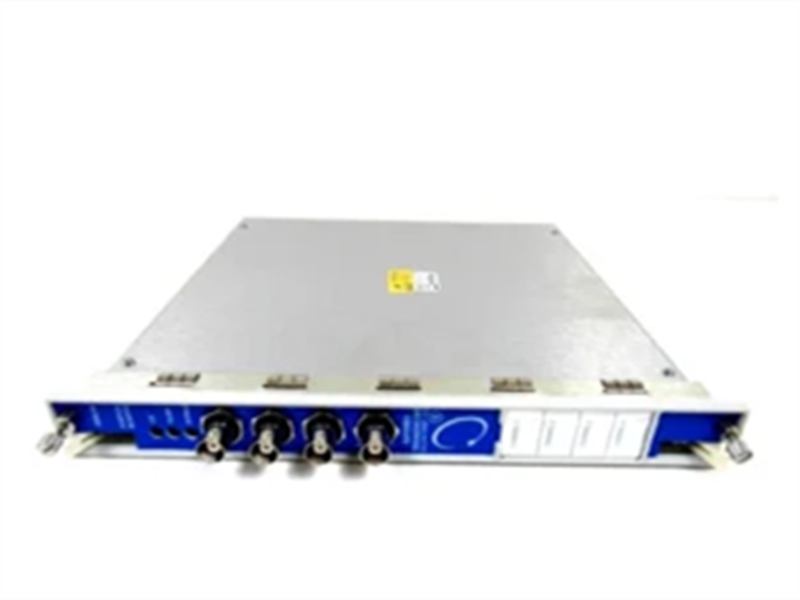

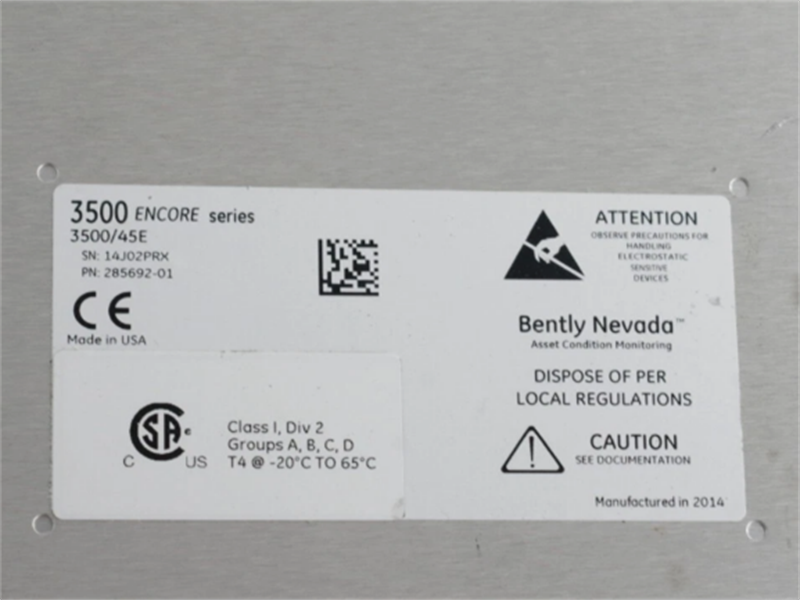

3500/45E Bently Nevada 285692-01 Position Monitor Module

Description:

The 3500/45E Position Monitor is a 4-channel monitor that accepts input fromproximity transducers, Rotary Position Transducers (RPTs), DC Linear VariableDifferential Transducers (DC LVDTs), AC Linear Variable Differential Transducers(AC LVDTs) (Supported only in a 3300 rack upgrade lEncore 1.0) and rotarypotentiometers, conditions the signal to provide various vibration and positionmeasurements, and compares the conditioned signals with user-programmablealarms. The user can program each channel of the 3500/45E using the 3500Rack Configuration Software to perform any of the following functions:

• Axial {thrust) Position
• Differential Expansion
• Standard Single Ramp Differential ExpansionNon-standard Single Ramp Differential Expansion
• Dual Ramp Differential Expansion
• Complementary Differential Expansion
• Case Expansion
• Valve Position

Specifications:

Inputs Signal: Accepts from 1 to 4 proximity, LVDT or Rotary Position Transducer (RPT) signals.
Input Impedance: 1 MΩ (DC LVDT Inputs)
                          10 kΩ (Proximitor Inputs)
                          137 KΩ (AC LVDT Inputs)
                          200 kΩ (Rotary Potentiometer Inputs)
Power Consumption: 6.8 W, typical.
Output Impedance: 499 Ω
Proximitor or RPT: -24 Vdc.
DC LVDT : +15 Vdc.
AC LVDT : 2.3 Vrms 3400 Hz sine wave.
Rotary Potentiometer: -14.68 Vdc.
Accuracy: Within ±0.33% of full-scale typical, ±1% maximum.

Features:

• Real time location tracking

Real time monitoring and recording of mechanical position data, precise monitoring.

• Integrated I/O function

supports smooth data transmission and system interoperability.

• Industrial grade durability

stable operation under harsh conditions, ensuring uninterrupted performance.

• 3500 System Compatibility

Seamless Integration with Bently Nevada 3500 Monitoring Platform.

• Proactive alarm

timely diagnosis, prevention of faults, and ensuring operational safety.

Figures and Tables:

Datasheet Link:

3500/45E Bently Nevada 285692-01 Position Monitor Module PDF Datasheet
