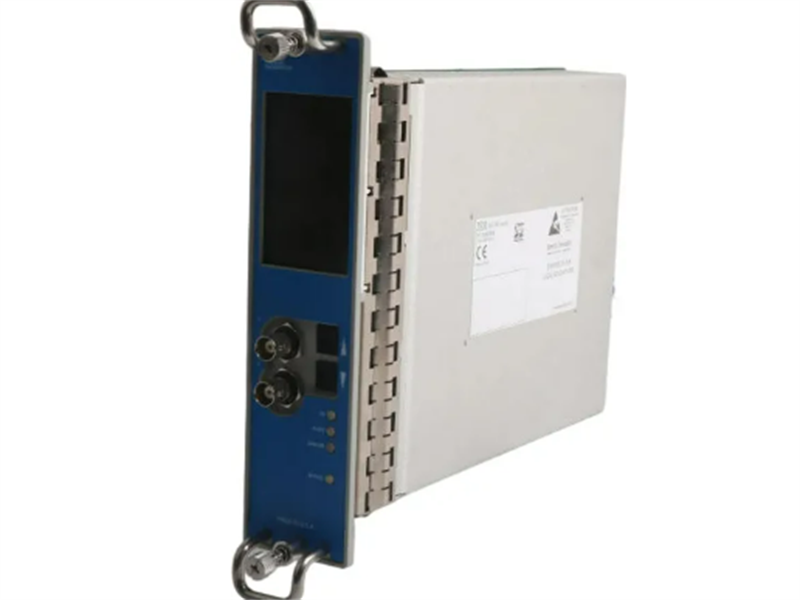

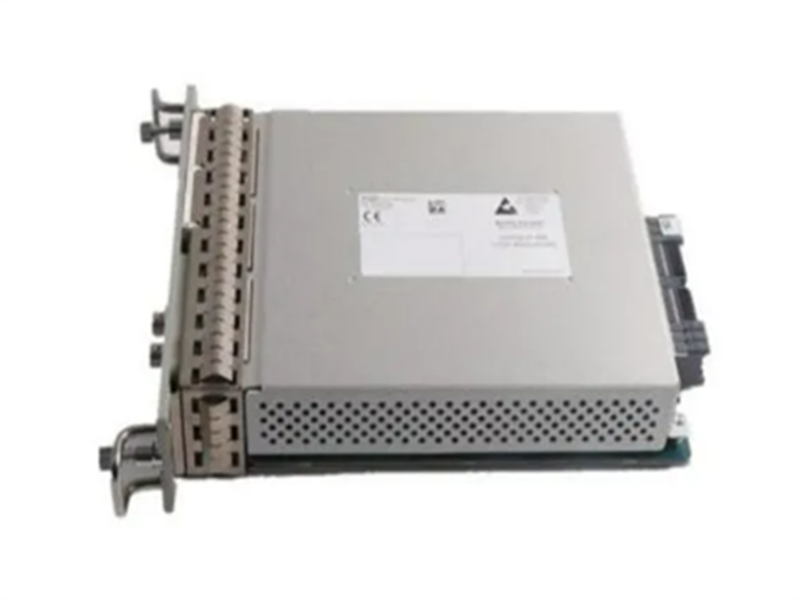

3500/50E Bently Nevada Tachometer Module

Description:

The 3500/50E Tachometer Module is a 2-channel module that accepts input from proximity probes or magnetic pickups (except as noted) to determine shaft rotative speed, rotor acceleration, or rotor direction, compares these measurements against user-programmable alarm setpoints, and generates alarms when these setpoints are violated. The 3500/50E Tachometer Module is programmed using the 3500 Rack Configuration Software and can be configured with four different options: 1. Speed Monitoring, Setpoint Alarming, and Speed Band Alarming. 2. Speed Monitoring, Setpoint Alarming, and Zero Speed Notification. 3. Speed Monitoring, Setpoint Alarming, and Rotor Acceleration Alarming. 4. Speed Monitoring, Setpoint Alarming, and Reverse Rotation Notification.

• 1. Speed Monitoring, Setpoint Alarming, and Speed Band Alarming.
• 2. Speed Monitoring, Setpoint Alarming, and Zero Speed Notification.
• 3. Speed Monitoring, Setpoint Alarming, and Rotor Acceleration Alarming.
• 4. Speed Monitoring, Setpoint Alarming, and Reverse Rotation Notification.

Specifications:

Input Impedance:20 k Ω (standard);
Power Consumption: 4.75 watts, typical.
Output Impedance: 500 Ω.
Transducer Power Supply:24 Vdc, 40 mA maximum per channel.
Operating Temperature: -20 ºC to +65 ºC (-4 ºF to +150 ºF)
Storage Temperature: -30 ºC to +85 ºC (-22 ºF to +185ºF).
Humidity: 95%, non-condensing.

Features:

• Real time location tracking

Real time monitoring and recording of mechanical position data, precise monitoring.

• Integrated I/O function

supports smooth data transmission and system interoperability.

• Industrial grade durability

stable operation under harsh conditions, ensuring uninterrupted performance.

• 3500 System Compatibility

Seamless Integration with Bently Nevada 3500 Monitoring Platform.

• Proactive alarm

timely diagnosis, prevention of faults, and ensuring operational safety.

Figures and Tables:

Datasheet Link:

3500/50E Bently Nevada Tachometer Module PDF Datasheet
