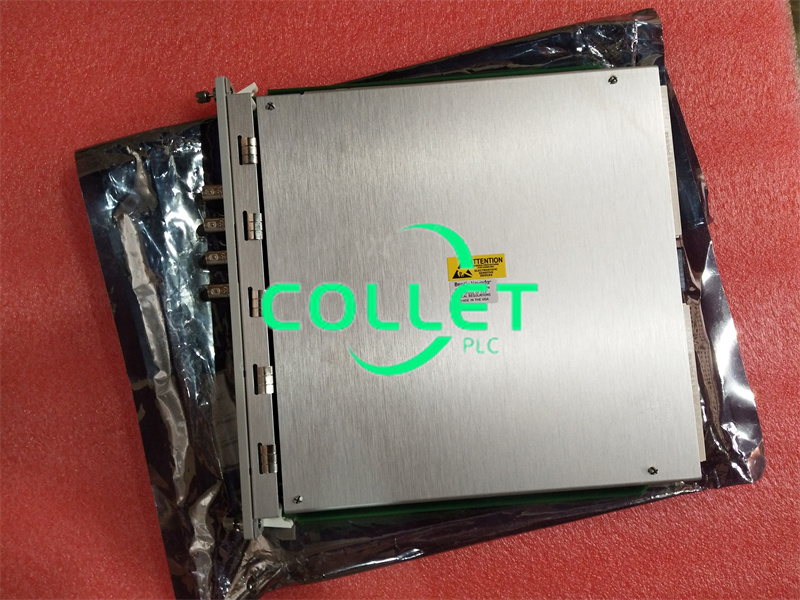

The bently nevada 3500/42M displacement/velocity acceleration monitor can accept 1 to 4 displacement, velocity or acceleration sensor signals. It is a 4-channel monitor that can accept signals from displacement, velocity, and acceleration sensors. By processing these signals, it can complete a variety of vibration and position measurements and compare the processed signals with the alarm values programmed by the user. Each channel of the 3500/42M can be programmed using the 3500 Framework Configuration Software.
Sensitivity Radial vibration: 3.94 mV/μm (100 mV/mil) or 7.87 mV/μm (200 mV/mil).
Axis displacement: 3.94 mV/μm (100 mV/mil) or 7.87 mV/μm (200 mV/mil).
Eccentricity: 3.94 mV/μm (100 mV/mil) or 7.87 mV/μm (200 mV/mil).
Differential expansion: 0.394 mV/μm (10 mV/mil) or 0.787 mV/μm (20 mV/mil).
REBAM®: 40 mV/μm (1000 mV/mil) or 80 mV/μm (2000 mV/mil).
Dual acceleration: 10 mV/(m/s2) (100 mV/g).
Dual Speed: 20 mV/(mm/s) pk (500 mV/(in/s) pk) or 5.8 mV/(mm/s) pk (145 mV/(in/s) pk) or 4 mV/(mm/s) pk (100 mV/(in/s) pk).
Shaft Absolute, Radial: 3.94 mV/μm (100 mV/mil) or 7.87 mV/μm (200 mV/mil).
Shaft Absolute, Full Frequency: 3.94 mV/μm (100 mV/mil) or 7.87 mV/μm (200 mV/mil).
Absolute shaft vibration, velocity: 20 mV/(mm/s) pk (500 mV/(in/s) pk) or 5.8 mV/(mm/s) pk (145 mV/(in/s) pk) or 4 mV/(mm/s) pk (100 mV/(in/s) pk).
Sensor power supply: -24 Vdc
140734-02 3500/42M Proximitor/Seismic Monitor.
176449-02 3500/42M Proximitor/Seismic Monitor
128229-01 Proximitor/Seismic I/O Module with Internal Terminals.
128240-01 Proximitor/Seismic I/O Module with External Terminals.
126632-01 Triple Redundant I/O Module with External Terminals.
00530843 Proximitor/Seismic I/O Module Four-Pin Connector Shunt.
143489-01 3500/42M Monitor Manual.
135489-01 I/O Module with Internal Barrier (Internal Terminals) (4× Proximitor/Seismic).
135489-02 I/O module with internal safety barrier (internal terminals) (2× displacement/acceleration + 2× speedometer).
135489-03 I/O module with internal safety barrier (internal terminals) (4× speedometer).
138708-01 Shaft absolute vibration I/O module with internal terminals.
138700-01 Shaft absolute vibration I/O module with external terminals.
00517018 3500/42M Shaft absolute vibration I/O module
140471-01 Displacement/speedometer I/O module with internal terminals.
Common models
3500/42-01-00
3500/42-01-CN
3500/42-02-00
3500/42-04-00
3500/42-04-CN
