Vibro-meter’s CA series of sensors are high-temperature, piezoelectric-based accelerometers designed for the long-term measurement and monitoring of absolute vibration in the most severe of environments (up to 700°C).

An external signal conditioner is used to convert the sensor’s low-level pC/g output into a current or voltage signal suitable for transmission to the monitoring system. As a result, CA-based solutions enable high-performance at higher temperatures.

Key features
– Available in standard versions and in Ex versions certified for use in hazardous areas
– Finds application in high-temperature environments, safety-related applications using SIL 2 measurement chains
– Qualified by major OEMs for industrial vibration monitoring.

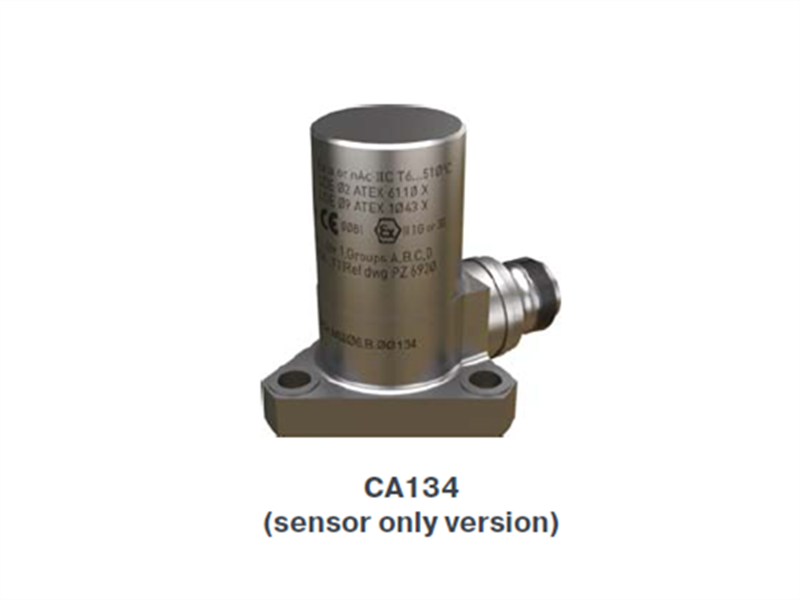

CA134 piezoelectric accelerometer
Designed for the long-term measurement of vibration over wide temperature ranges in extreme environments, such as gas turbines or cryogenic applications

Operating temperature: −54 to 500 °C, −253 (20 K) to 500 °C for cryogenic version
Frequency response: 0.5 to 6000 Hz
Available as a sensor only (no integral cable) or with an integral mineral-insulated (MI) with a double braid
Certified for use in potentially explosive atmospheres

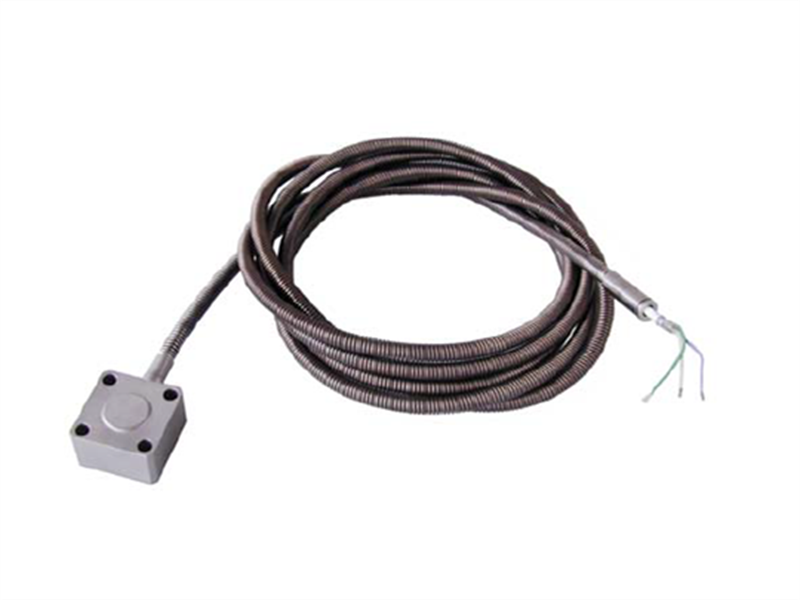

CA202 piezoelectric accelerometer
Designed for the long-term measurement of vibration in extreme environments, such as heavy-duty gas turbine and steam turbine

Operating temperature: −55 to 260 °C
Frequency response: 0.5 to 6000 Hz
Available with an integral soft-line cable with a flexible stainless steel hose
Certified for use in potentially explosive atmospheres

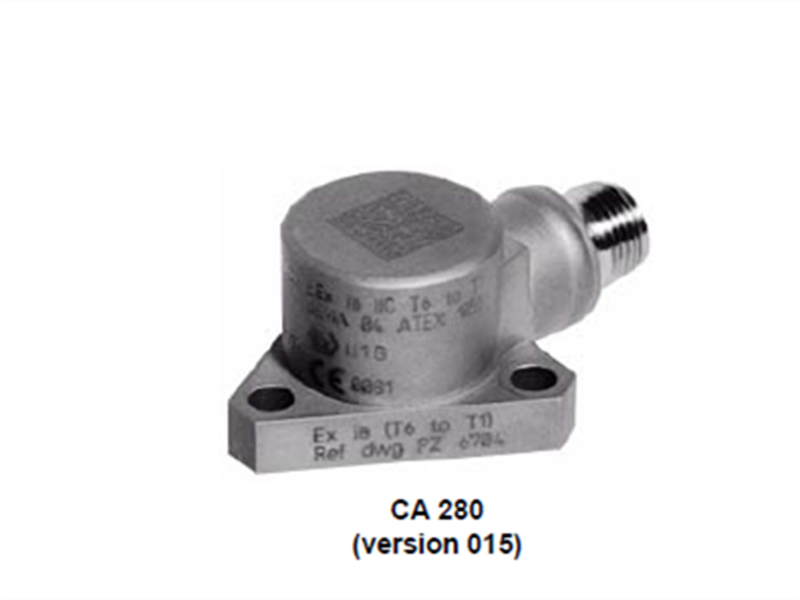

CA280 piezoelectric accelerometer
Designed for the long-term measurement of vibration in extreme environments, such as gas turbines, gearboxes and compressors

Operating temperature: −60 to 260 °C
Frequency response: 0.5 to 6000 Hz
Available as a sensor only (no integral cable) or with an integral soft-line cable with a flexible stainless steel hose
Certified for use in potentially explosive atmospheres

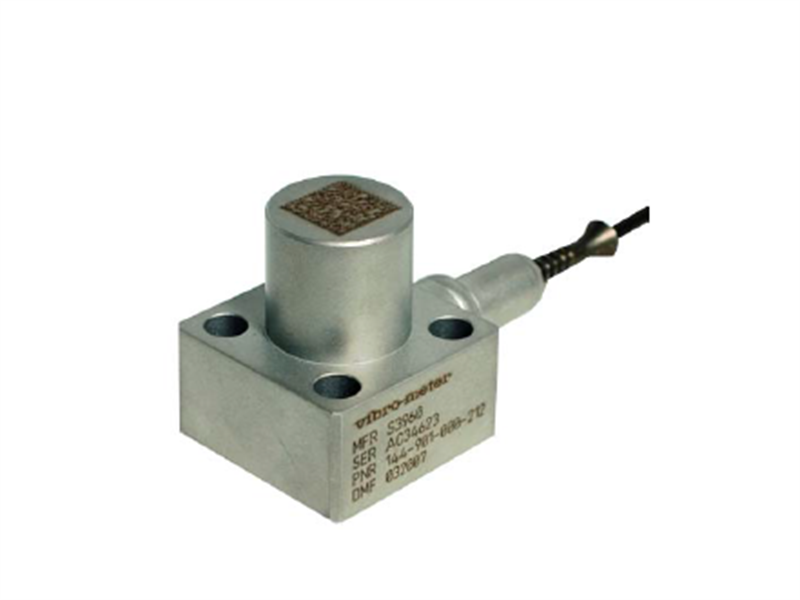

CA901 piezoelectric accelerometer
Designed for the long-term measurement of vibration in extreme environments, such as gas turbines and nuclear applications

Operating temperature: −196 to 700 °C
Frequency response: 3 to 3700 Hz
Available with an integral mineral-insulated (MI) cable
Certified for use in potentially explosive atmospheres
