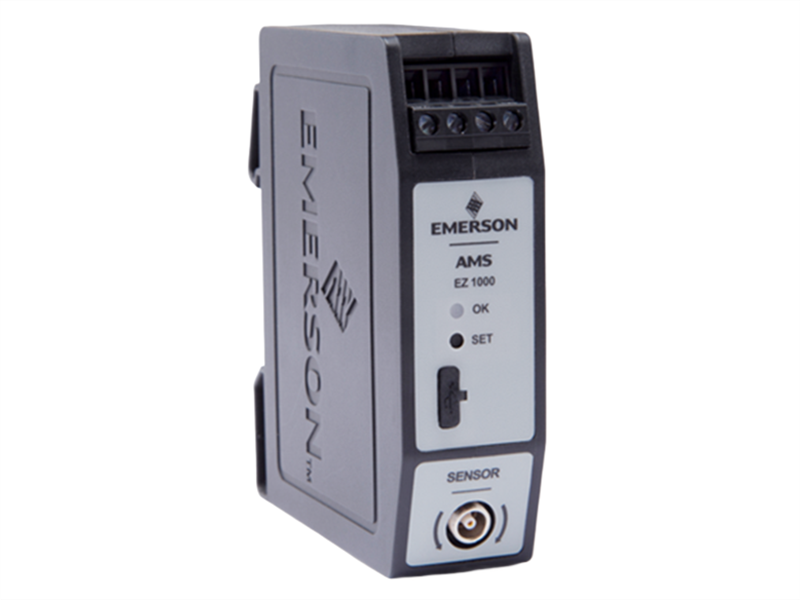

EZ1000-FCAL EPRO Eddy Current Measurement System

Description:
The AMS EZ 1000 is a modular eddy current measurement system for machinery health monitoring. lt combines asensor, cable, and converter, available individually or as a complete chain. Furthermore, it reduces downtimesimplifies inventory management, and meets APl 670 standards. The system monitors vibration and displacement inrotating machinery with high precision.

Specifications:
Model: EZ1000-FCAL

Measurement Principle: Eddy current (non-contact)
Sensor Tip Sizes: 5 mm, 8 mm, and other options
Thread Sizes: M10x1, M14x1.5
Cable Types: Armored and non-armored
Cable Lengths: 1 m to 10 m
Converter Compatibility: One converter supports multiple sensor/cable combinations
Calibration Methods: Automatic, two-point, manual
Excitation Frequency: Flexible to reduce cross-talk

• Operating Temperature:

Sensor:-35°C to +180°C
Cable: -35°C to +150°C
Converter: -30°C to +100°C
Protection Class: lP66

• Linear Measurement Gap:

o 5 mm sensor: 1 mm / 40 mils
8 mm sensor: 2 mm / 80 mils

• Initial Air Gap:

o 5 mm sensor: 0.25 mm /10 mils
o 8 mm sensor:0.5 mm/20 mils

Deviation from Straight Line (DSL): ±0.025 mm (+1 mil) @ 0-45°C (+32 to +113°F)Minimum Target Size: 2 mm (80 mils)

• Minimum Shaft Diameter:

5 mm sensor: 20 mm (0.98")。
o 8 mm sensor: 25 mm (0.79")

Features:

• High Precision and Reliability

A temperature-controlled crystal oscillator provides an extremely stable and precise measurement reference, ensuring long-term measurement repeatability and accuracy. It is ideal for critical equipment requiring high-precision vibration measurement.

• Modularity and Flexibility

The system features a highly modular design. Each EZ1000-FCAL Proximitor Module can independently connect an eddy current sensor.

• Versatile Measurement

It can not only measure relative shaft vibration, but also accurately measure relative shaft position, speed, and key phase signals.

• Powerful Self-Diagnostics

The module features comprehensive built-in self-diagnostics that continuously monitor the health of the sensor and its cable.

• Probe coil open or short circuit diagnosis

Probe-to-surface gap voltage monitoring ensures operation within the linear range.
OK/NotOK output signals facilitate system integration and provide early warning.

• Compatibility and Integration

As part of the EPRO MMS 6000 series rotating machinery monitoring system, it seamlessly integrates with monitoring racks.

• Wide Temperature Range and High Stability

Designed for harsh industrial environments, this sensor features a wide operating temperature range. Its high-stability design minimizes temperature drift, ensuring data reliability across a wide range of ambient temperatures.

Frequently Asked Questions:

1.What is the payment term?
Wire transfer only.

2.When does the warranty period start?
One year from the time the client receives the goods.
