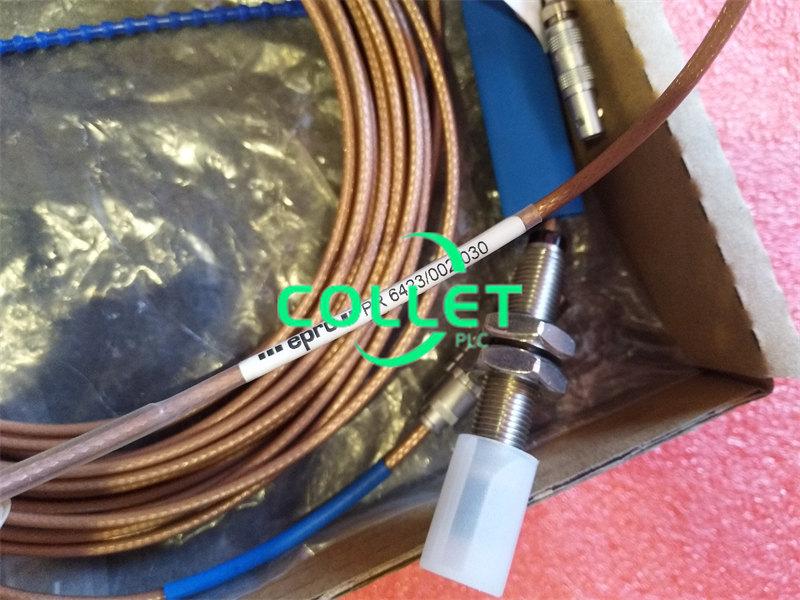

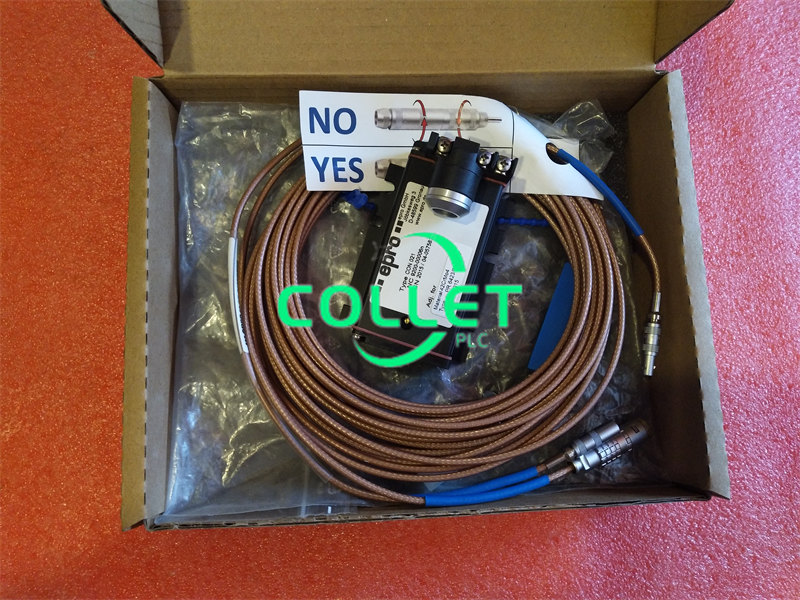

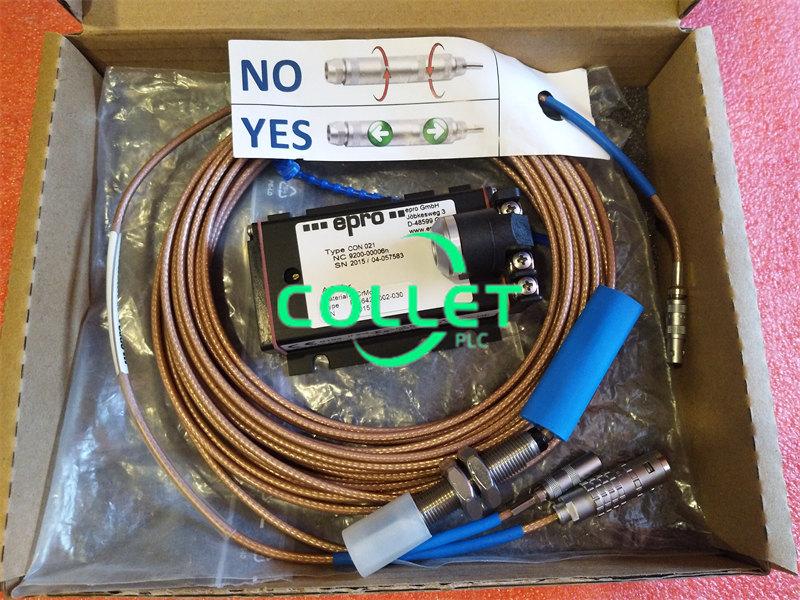

PR6423/002-030+CON021 EPRO 8M Cable Length PROBE

Description:
PR6423/000-040+CON021 is an 8mm Eddy Current Sensor.

Model No.: PR6423/002-030+CON021

Case Thread X: 0  45mm

Adapter Plug X: 0 With

Cable Length X: 3 8.0m

Cable End X: 0 0 Lemo*

Non-contact sensor designed for critical turbomachinery applications such as steam, gas and hydro turbines, compressors, gearboxes, pumps and fans to measure radial and axial shaft dynamic displacement; position, eccentricity and speed.

The PR 6423 is a non-contact eddy current transducer with a rugged construction and designed for extremely critical turbomachinery applications such as steam, gas, compressor and hydro turbomachinery, blowers and fans.

The purpose of a displacement probe is to measure position or shaft movement without contacting the measured surface – the rotor.

In the case of sleeve bearing machines, the shaft is separated from the bearing material by a thin film of oil. The oil acts as a dampener and therefore the vibration and position of the shaft are not transmitted through the bearing to the bearing case.

The use of case vibration sensors is discouraged for monitoring sleeve bearing machines since the vibration produced by shaft motion or position is greatly attenuated through the bearing oil film.

The ideal method of monitoring shaft position and motion is by mounting a non-contact eddy sensor through the bearing, or inside the bearing, measuring the shaft motion and position directly. The PR 6423 is commonly used to measure vibration of machine shafts, eccentricity, thrust (axial displacement), differential expansion, valve position, and air gaps.

Non-contact measurement of static and dynamic shaft displacement
- Axial and radial shaft displacement (position)
- Shaft eccentricity
- Shaft vibration (motion)

Meets international standards, DIN 45670, ISO 10817-1 and API 670

Rated for explosive area, Eex ib IIC T6/T4 Other displacement sensor selections include PR 6422, PR6423, PR 6424 and PR 6425

Select converter, such as CON011/91, 021/91, 041/91, and cable for complete transducer system

Specifications:
-Measuring range: 0.5 to 100 mm
-Accuracy: ±0.1%
-Repeatability: ±0.05%
-Operating temperature range: -40°C to +125°C
-Output signal: 4 to 20 mA
-Sensitivity: 8 V/mm (203.2 mV/mil)
-Initial Air Gap: 2 mm (80 mils)
-Material and Coating: Gold-plated sensor tip, stainless steel housing
-Resistance to Mechanical Stress: lmpact resistance up to 50g
-Output signal: Differential DC voltage
-Power supply Voltage: 12 V DC
-Signal Processing: Linearization circuit onboardCertifications: CE, lECEx
-Electrical Connector: M12 4-pin
-Cable Length: 3 meters (9.8 feet)
-Sensor Operating Temperature Range: -25 to +125'C(-13 to +257°F)
Features:
-Wide operating temperature range
-Rugged construction for harsh environments
-Easy installation and maintenance

• Non-Contact Precision

Measures shaft displacement, position, and eccentricity without touching the shaft, ensuring no wear or damage.

• Exceptional Range

Covers a measuring range from ±0.01 to ±10 mm, with remarkable accuracy and repeatability.
High Resolution: Boasts a resolution of 0.001 mm for precise measurements.

• Wide Frequency Response

With a frequency response spanning 0 to 10 kHz, it captures dynamic shaft movements effectively.

• Convenient Cable Length

Features a generous 10-meter cable for flexible installation.

Frequently Asked Questions:

1.What is the payment term?
Wire transfer only.

2.When does the warranty period start?
One year from the time the client receives the goods.

Datasheet Link:

PR6423/002-030+CON021 EPRO 8M Cable Length PROBE PDF Datasheet
