Manufacture |
EPRO |
|
Model |
PR6424/010-100+CON021 |
| PN No. | PR6424/010-100+CON021 |
|
Catalog |
PR6424 |
|
Description |
16mm Eddy Current Sensor |
| Origin | Germany |
| HS CODE |
85389099 |
|
Dimension |
18*13*4 (CM) |
| Weight | 0.2 kg |
Description:

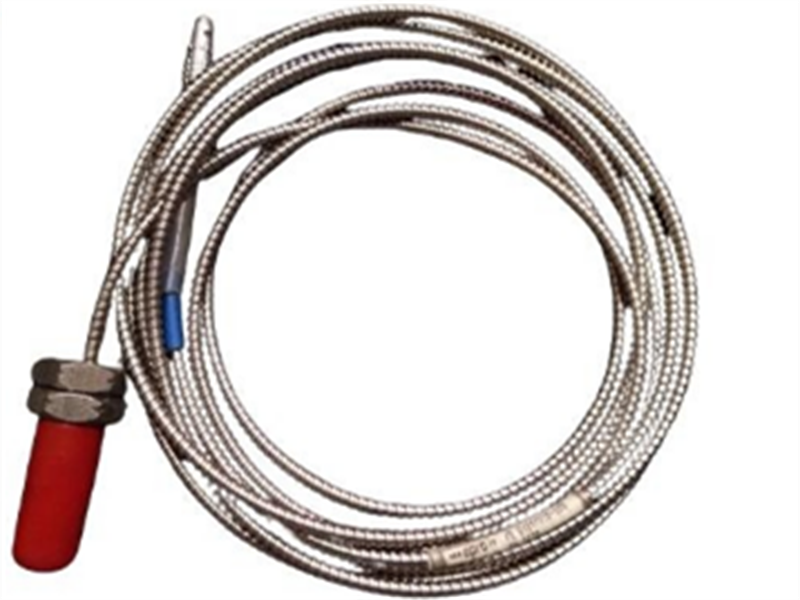

PR6424/010-100+CON021 is M18x1.5 sleeve thread, with armored cable, 40mm total sensor length, without daptor plug, 5 meters cable length with LEMO cable end. It is belong to non-contact sensor, which is designed for critical turbo machinery applications such as steam, gas and hydro turbines, compressors, pumps and fans to measure radial and axial shaft dynamic displacement; position, eccentricity and speed/key.
Parameters:
- Dynamic Performance
Air Gap (Center)：Approx. 2.7 mm (0.11”) Nominal
Long Term Drift：< 0.3%
Range: Static ±2.0 mm (0.079”)
Dynamic 0 to 1,000μm (0 to 0.039”)
- Target
Maximum Surface Speed: 2,500 m/s (98,425 ips)
Shaft Diameter: ≥80mm
- Environmental
Temperature Error: ＜4%/100°K（API 670 Compliant）
Pressure Resistance to Sensor Head: 10,000 hPa (145 psi)
Shock and Vibration: 5g @ 60Hz @ 25°C (77°F)
- Physical
Weight (Sensor & 1M Cable, no Armor) : ~200 grams (7.05 oz)
Sakup sa pagsukod: 0.5 hangtod 100 mm
Pagkatukma: ± 0.2% sa pagbasa
Pagbalikbalik: ± 0.1% sa pagbasa
Output signal: 4-20 mA
Temperatura sa pag-operate: -40 hangtod + 85 ° C
Temperatura sa pagtipig: -55 hangtod + 125 ° C
Pagkurog: 50 g peak-to-peak
PR6424/010-100+CON021 EPRO 16mm Eddy Current Sensor PDF Datasheet
