Training Catalog for Upgrade and Retrofit Applications

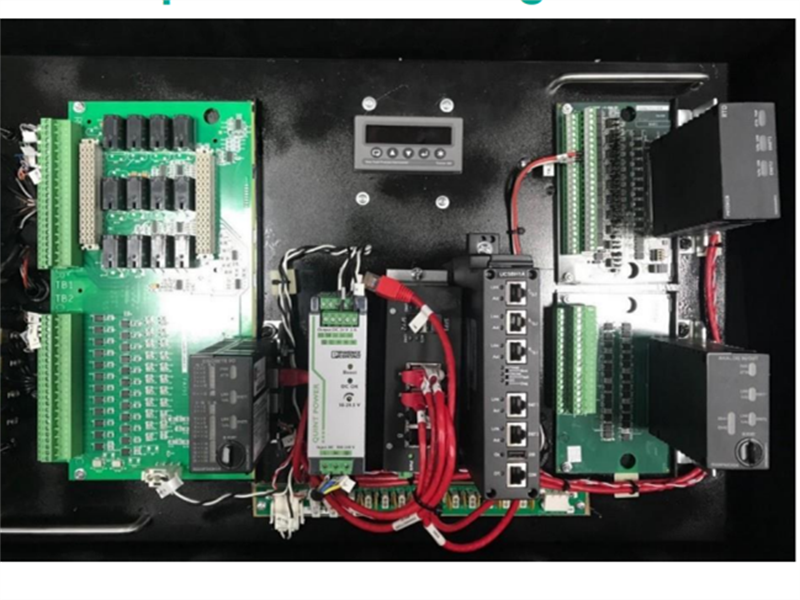

Mark VIe portable training kit

The Mark VIe portable trainer includes:
• 1 UCSA\B processor board
• 1 PDIO pack mounted on TDBS + WROB terminal board for discrete I/O
• 1 PAIC pack mounted on STAI terminal board for analog I/O
• 1 power supply
• 1 network switch for IONet and external communications
• 4 on/off toggle switches to mimic digital inputs
• 4 lights for analog output simulation
• 1 potentiometer for analog input simulation
• 1 analog\RTD meter for analog output\RTD value display
• 1 PRTD pack mounted on SRTD terminal board for RTDs

Portable kit would help trainees to:
• Communicate with Mark VIe controller
• Troubleshoot and communicate with Mark VIe IO modules
• Terminate different IOs to Mark VIe TBs
• Download software and normalize IOPacks
• Hardware components online/offline replacement
• Simulation of different IO combinations
• Normally software provided with the kit will be full simulation enabled which allows trainees to connect to kit and simulate full real-case scenario as unit start/shutdown/trip etc.

FAT Validated Simulation
FAT Validated simulation brings customerapproved software to the classroom. Trainees will perform labs and troubleshooting exercises on their sitespecific application software and graphics software packages installed and functional. This provides familiarity with the new platform and in many cases helps simulate actual problems onsite.

This shall allow trainees to get full simulation capabilities with respect to unit startup, shutdown and trip simulation as well. Along with that, there shall be pre-configured labs for most of training sessions that will be conducted under supervision of instructor.

Upon request, site-specific software and graphics could be provided along with simulation laptop however, this shall be highlighted during early training discussion.

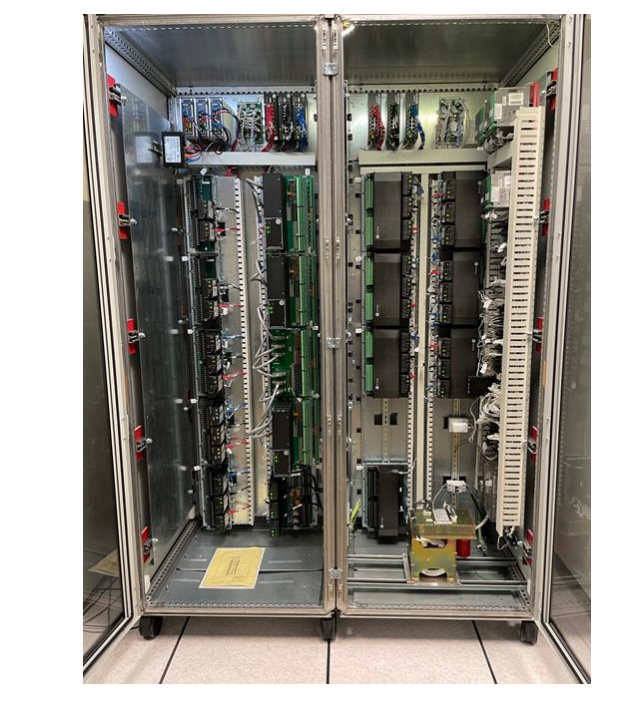

Mark VIe TMR typical panel
Typical Panel help trainees to:
• Communicate with Redundant Mark VIe controller
• Redundancy Test
• Same experience as if you are working on actual onsite Panel
• Troubleshoot and communicate with Mark VIeIO modules
• Terminate different IOs to Mark VIe TBs
• Download software and normalize IOPacks
• Hardware components online/offline replacement
• Simulation of different IO combinations
• Normally software provided with the kit will be full simulation enabled which allows trainees to connectto kit and simulate full real-case scenario as unit start/shutdown/trip etc.

EX2100e training tools
For electrical sessions, standalone controller and networkswitch will be provided as training supporting tool along with simulation laptops
