VM600 Monitoring System
Modular and backplane-based assembly. Monitoring modules can be installed in any of the 12 available slots. Modules are hot-swappable without loss of configuration data.

» 19-inch, 6U height(ABE040/ABE042)
» Robust aluminum construction
» Indoor or panel mounting options
» Backplane supports VME bus, analog bus, speed bus, and open relay bus
1 or 2 Power Supply Modules (RPS 6U)
1 CPU Module
12 Machine Protection Modules (MPC 4), Analog Monitoring Modules (AMC 8), or Condition Monitoring Modules(CMC 16)

18 Relay Modules (RLC 16)

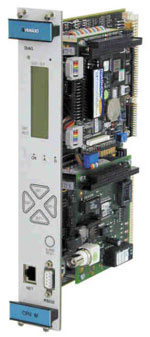

Central Processing Unit(CPU M)
The CPU serves as the network controller and communication gateway for the VM600 system.

It manages the configuration data and communication functions for all modules.

Its advantages include:
» Reduced spare parts inventory
» Simplified training requirements
» Flexible operation

Depending on system requirements, the CPU can be installed independently on the front of the chassis,

or it can be used in conjunction with IOC N input/output cards.
The entire chassis can be configured via Ethernet.
LCD data display
Modbus RTU serial communication
Modbus TCP Ethernet communication
Data output communication

Fully software-configurable, continuous online protection module. Includes filtering, integration/differentiation,

Order tracking (synchronized amplitude and phase),(MPC 4)
High and low-value alarms for Warning and Danger conditions. Installs in the front slots of the VM600 rack.

» Advanced real-time DSP technology
» 4 dynamic inputs & 2 speed inputs
» Self-test and diagnostic system; OK system
» Raw signal BNC output terminals on the front panel
» Provides power for accelerometers, eddy current probes, and most Vibro-Meter preamplifiers
» Adaptive Warning & Danger alarm settings
» Any channel can monitor any dynamic parameter of the machine

DC Input: 0 to +20V, 0 to -20V, or 0 to 25mA
AC Input: ±10V or ±8mA, 0.1 to 10kHz
High-pass, low-pass, and band-pass filtering; 6 to 60 dB/octave
Tracking Filter: Q=28 (constant Q), 0.13 Hz to 10 kHz
1/3, 1/2, 1st, 2nd, 3rd, and 4th orders
Gap/Position (Eddy Current Systems): DC to 1kHz

Power Supply Module(RPS 6U)
High-performance power supply module for the VM600 chassis.

» AC and DC inputs
» VME bus compatible
» Wide input voltage range
» Overload and short-circuit protection
» Supports redundancy
» Fully EMC compliant

Typical DC inputs: 24, 48, 72, or 110 V
Typical AC inputs: 110/230 V
-25°C to +65°C
±0.2% Stability

Condition Monitoring Card(CMC 16)
A highly intelligent data acquisition unit for condition monitoring systems.

Performs all condition monitoring functions (but does not perform machine protection functions).

Digitally processes signals using Fast Fourier Transform (FFT). Fully software-configurable.

16 channels for dynamic or static inputs.
The first 4 channels can be configured as Keyphasor inputs.
The remaining 12 channels can be configured as process variable inputs.
Supports fixed-frequency and order-tracking analysis.
Each channel features programmable anti-aliasing filters and an ADC.
Fully hot-swappable.
Features three status indicator LEDs on the front panel.

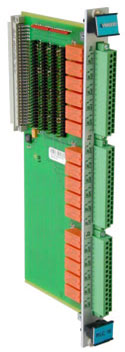

VM600 System Relay Card(RLC 16)
Optional programmable relay outputs; designed to fulfill all functional requirements when the relays on the IOC4T card are insufficient.

Mounts at the rear of the VM600 chassis.

» 16 Relays
» Euro-style input terminals
» Hot-swappable

Max. Current: 0.35 ADC, 5 AAC
Max. Voltage: 300 VDC, 250 VAC
Power: 100 W (1250 VA)
