Vibro-meter’s comprehensive range of sensors and measurement chains can be used with our monitoring system hardware and software (or third-party systems) in order to provide complete solutions for the monitoring and protection of critical machines and processes.

From standard to harsh industrial environments, including hazardous areas and/or extreme temperatures (up to 700°C).

High temperature vibration sensors

vibro-meter’s CA series of sensors are high-temperature, piezoelectric-based accelerometers designed for the long-term measurement and monitoring of absolute vibration in the most severe of environments (up to 700°C).

An external signal conditioner is used to convert the sensor’s low-level pC/g output into a current or voltage signal suitable for transmission to the monitoring system. As a result, CA-based solutions enable high-performance at higher temperatures.

Key features
– Available in standard versions and in Ex versions certified for use in hazardous areas
– Finds application in high-temperature environments, safety-related applications using SIL 2 measurement chains
– Qualified by major OEMs for industrial vibration monitoring.

---

CA134 piezoelectric accelerometer
Designed for the long-term measurement of vibration over wide temperature ranges in extreme environments, such as gas turbines or cryogenic applications

Operating temperature: −54 to 500 °C, −253 (20 K) to 500 °C for cryogenic version
Frequency response: 0.5 to 6000 Hz
Available as a sensor only (no integral cable) or with an integral mineral-insulated (MI) with a double braid
Certified for use in potentially explosive atmospheres

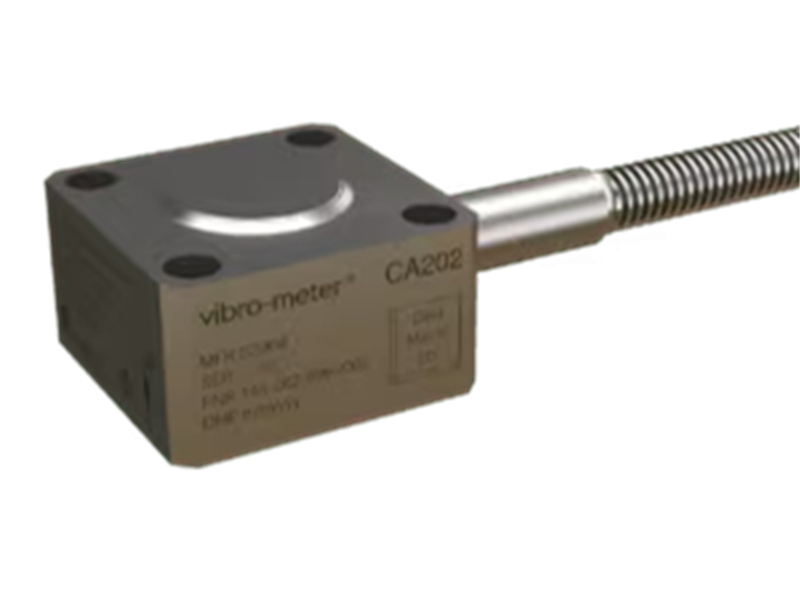

CA202 piezoelectric accelerometer
Designed for the long-term measurement of vibration in extreme environments, such as heavy-duty gas turbine and steam turbine

Operating temperature: −55 to 260 °C
Frequency response: 0.5 to 6000 Hz
Available with an integral soft-line cable with a flexible stainless steel hose
Certified for use in potentially explosive atmospheres

CA280 piezoelectric accelerometer
Designed for the long-term measurement of vibration in extreme environments, such as gas turbines, gearboxes and compressors

Operating temperature: −60 to 260 °C
Frequency response: 0.5 to 6000 Hz
Available as a sensor only (no integral cable) or with an integral soft-line cable with a flexible stainless steel hose
Certified for use in potentially explosive atmospheres

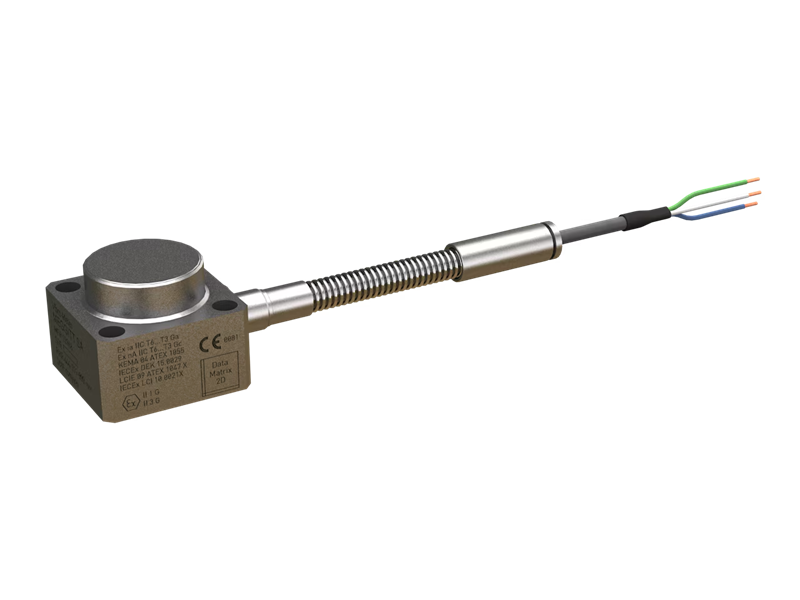

CA901 piezoelectric accelerometer
Designed for the long-term measurement of vibration in extreme environments, such as gas turbines and nuclear applications

Operating temperature: −196 to 700 °C
Frequency response: 3 to 3700 Hz
Available with an integral mineral-insulated (MI) cable
Certified for use in potentially explosive atmospheres

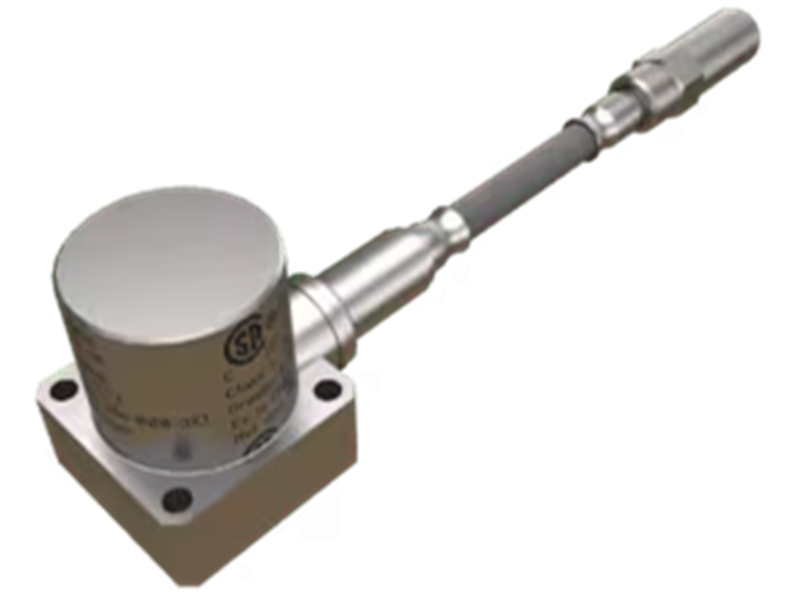

The CE and SE series of accelerometers with integrated electronics have excellent low-frequency response (down to 0.2 Hz). The CE series of sensors are piezoelectric-based accelerometers that come with either attached electronics for higher temperature applications (up to 350°C) or integrated electronics for lower temperature applications (up to 120°C).

These sensors are suitable for the vibration monitoring in gas turbines, steam turbines, compressors, pumps, and fans. For applications that do not require the temperature capabilities of a CA sensor, this series provides a more cost-effective and easier to install solution.

CE311 piezoelectric accelerometer
Designed for the long-term measurement of vibration in severe environments, such as heavy-duty gas turbines and steam turbines
High frequency response: up to 8000 Hz
High sensitivity: 50 µA/g
Current output (50 µA/g) for signal transmission over long distances: up to 1000 m
Certified for use in potentially explosive atmospheres

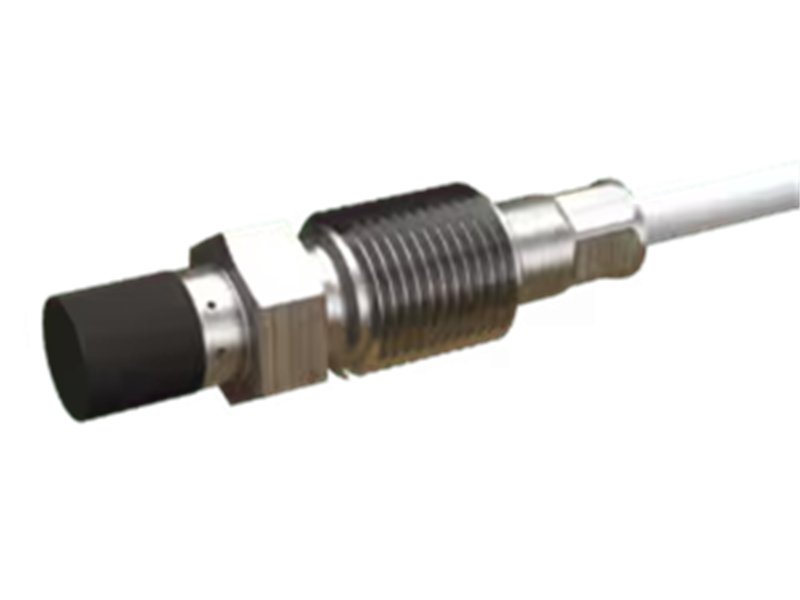

The TQ series of proximity sensors are rugged sensors that use the eddy-current principle in order to allow the contactless measurement of relative vibration, position and other measurements in harsh environments.

It covers a broad measurement range from 2 to 12 mm and are designed to withstand pressures up to 100 bar from speed and vibration to large-displacement expansion measurement using pendulum probes.

TQ902 proximity sensor
Designed for the contactless measurement of relative vibration and axial displacement in turbines, compressors, pumps and fans
2 or 4 mm measurement range (Ø8.2 mm sensor)
−40 to 180 °C operating temperature, IP68 protection rating
0.5, 1.0, 1.5, 2.0 or 5.0 m integral coaxial cable
Versions certified for use in potentially explosive atmospheres
Conforms to API 670 5th edition

TQ912 proximity sensor
Designed for the contactless measurement of relative vibration and axial displacement in turbines, compressors, pumps and fans
2 or 4 mm measurement range (Ø8.2 mm sensor)
−40 to 180 °C operating temperature, IP68 protection rating
0.5, 1.0, 1.5, 2.0 or 5.0 m integral coaxial cable.
Versions certified for use in potentially explosive atmospheres
Conforms to API 670 5th edition

TQ403 proximity sensor
Designed for the contactless measurement of relative vibration and axial displacement in turbines, compressors, pumps and fans
12 mm measurement range (Ø18 mm sensor)
−40 to 180 °C operating temperature, IP68 protection rating
1.0, 5.0 or 10.0 m integral coaxial cable
Certified for use in potentially explosive atmospheres

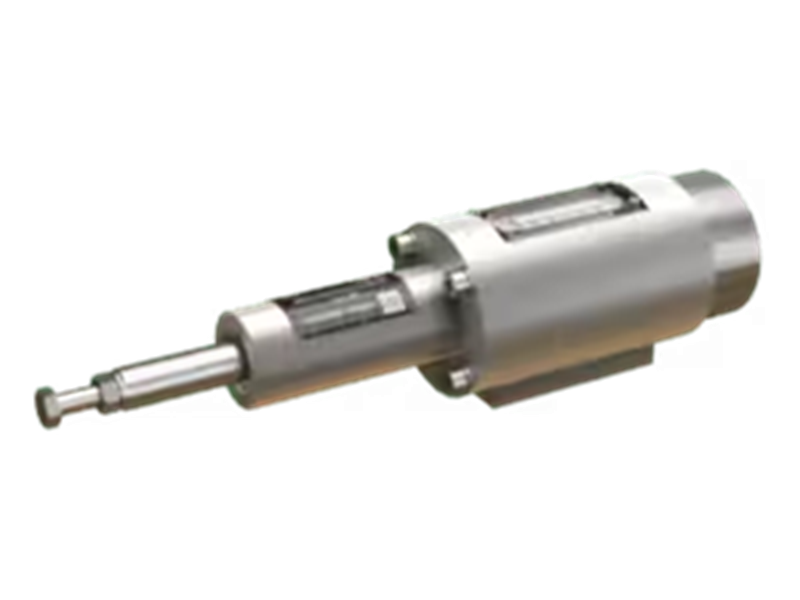

AE119 housing expansion probe
Designed for the long-term measurement of housing expansion in extreme environments, such as gas turbines and steam turbines
50 or 100 mm measurement range
0 to 100 °C (32 to 212 °F) operating temperature, IP55 protection rating
Integrated electronics
Current loop output (4 to 20 mA) for signal transmission over long distances
vibro-meter’s range of signal conditioners is designed for operation with our different sensors.

In general, the signal conditioner interfaces with a sensor and performs all required signal processing in order to provide a current or voltage signal suitable for transmission to the monitoring system.

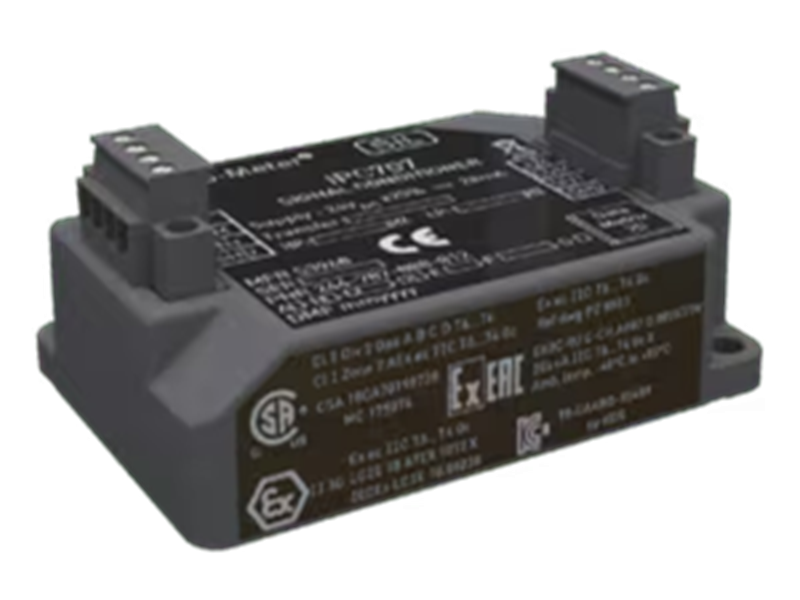

IPC707 signal conditioner
Signal conditioning for CA accelerometers and CP dynamic pressure sensors.
Vibration or dynamic pressure measurement for machinery protection and/or advanced condition monitoring.
Very wide frequency range (0.5 to 20000 Hz), with configurable high-pass and low-pass filters, independent of transfer function.
Configurable transfer function (sensitivity and units), with optional integrator to provide a velocity output.
Current output for long-distance signal transmission or voltage output for medium-distance signal transmission.
Certified for use in potentially explosive atmospheres (Ex) and/or safety-related applications (SIL).

IQS900 signal conditioner
Signal conditioning for TQ proximity sensors.
Shaft relative vibration and gap/position measurement for machinery protection and/or advanced condition monitoring.
Very wide frequency range (DC to 20000 Hz), with configurable sensitivity and measurement range.
Current output for long-distance signal transmission or voltage output for medium-distance signal transmission.
Certified for use in potentially explosive atmospheres (Ex) and/or safety-related applications (SIL).
Fully compliant with API 670 5th edition.

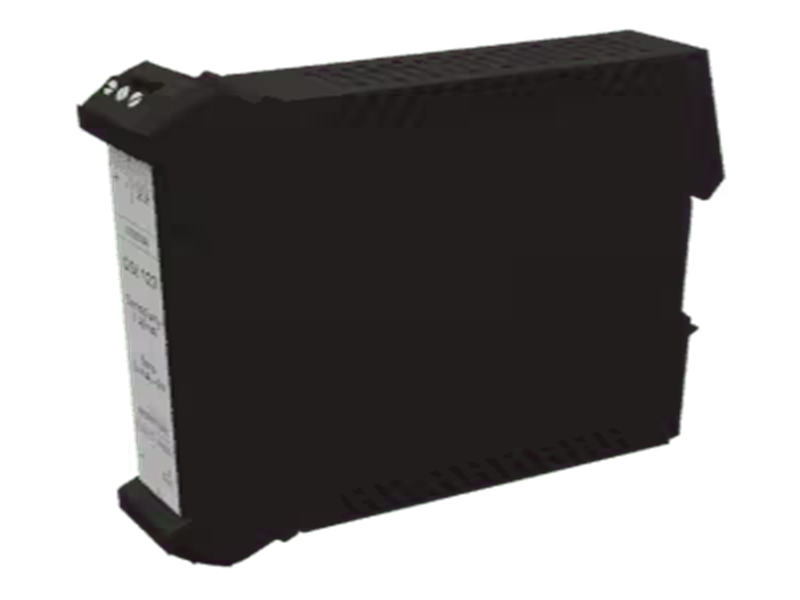

GSI127 galvanic separation unit
Power supply and galvanic separation unit for sensors and/or signal conditioners with a current or voltage output.
4 kVRMS galvanic separation between the sensor side and the monitor side.
50 VRMS galvanic separation between the power supply and the output signal.
μA to mV transfer function for long-distance signal transmission, V to V transfer function for short-distance signal transmission.
Also compatible with industry-standard IEPE sensors and 4 to 20 mA loop-powered sensors.
Certified for use in potentially explosive atmospheres (Ex) and/or safety-related applications (SIL).
